Programming and Relearning

POWER SYSTEMS PERSONALIZATION FEATURES SETTING PROCEDURE

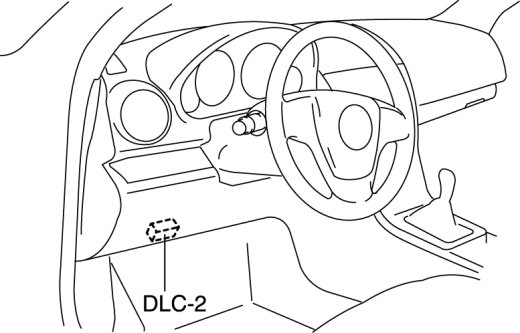

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the M-MDS (IDS).

- Select the "Module Programming".

3. Then, select items from the screen menu in the following order.
1 Select "Programmable Parameters".
2 Select "RKE".

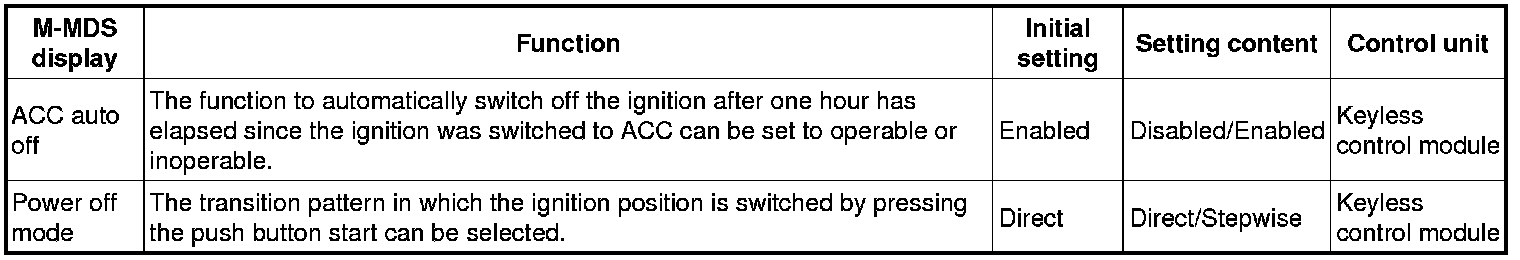

4. Select an item name, and then select option.
