Power Window Subswitch Inspection

POWER WINDOW SUBSWITCH INSPECTION

Passenger-side

With auto-open/close function

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

4. Connect the negative battery cable.

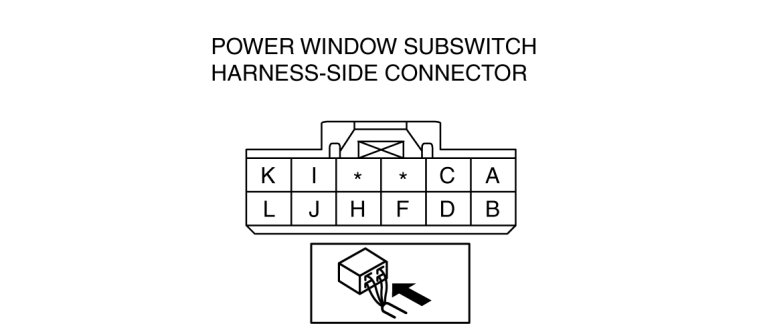

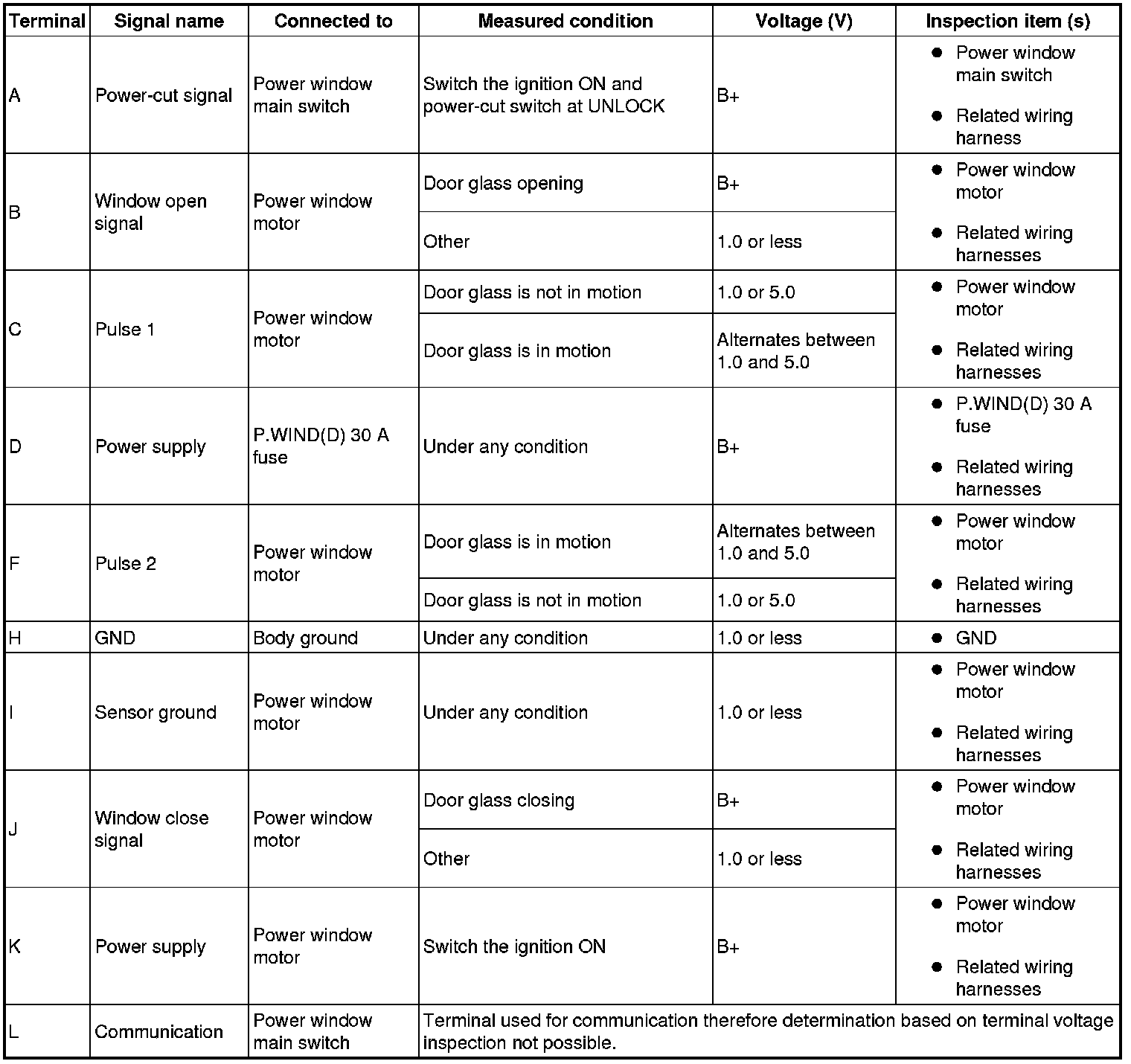

5. Measure the voltage at each terminal.

- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item(s)" and related wiring harnesses.





- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window subswitch. Power Window Subswitch Removal/Installation





Without auto-open/close function

1. Disconnect the negative battery cable.

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the front door trim. Front Door Trim Removal/Installation

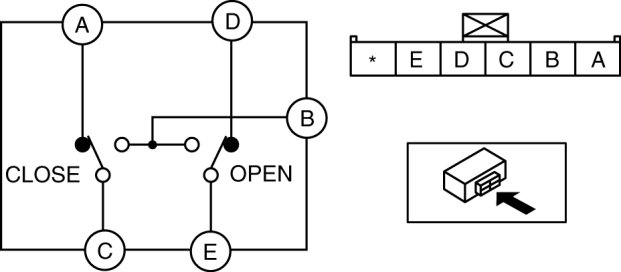

4. Verify that the continuity is as indicated in the table using a tester.






- If not as indicated in the table, replace the power window subswitch. Power Window Subswitch Removal/Installation






Rear

1. Disconnect the negative battery cable.

2. Remove the rear door trim. Rear Door Trim Removal/Installation

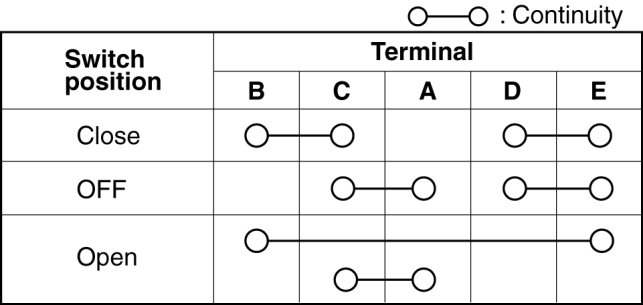

3. Verify that the continuity is as indicated in the table using a tester.






- If not as indicated in the table, replace the power window subswitch. Power Window Subswitch Removal/Installation
