Quick Diagnostic Chart

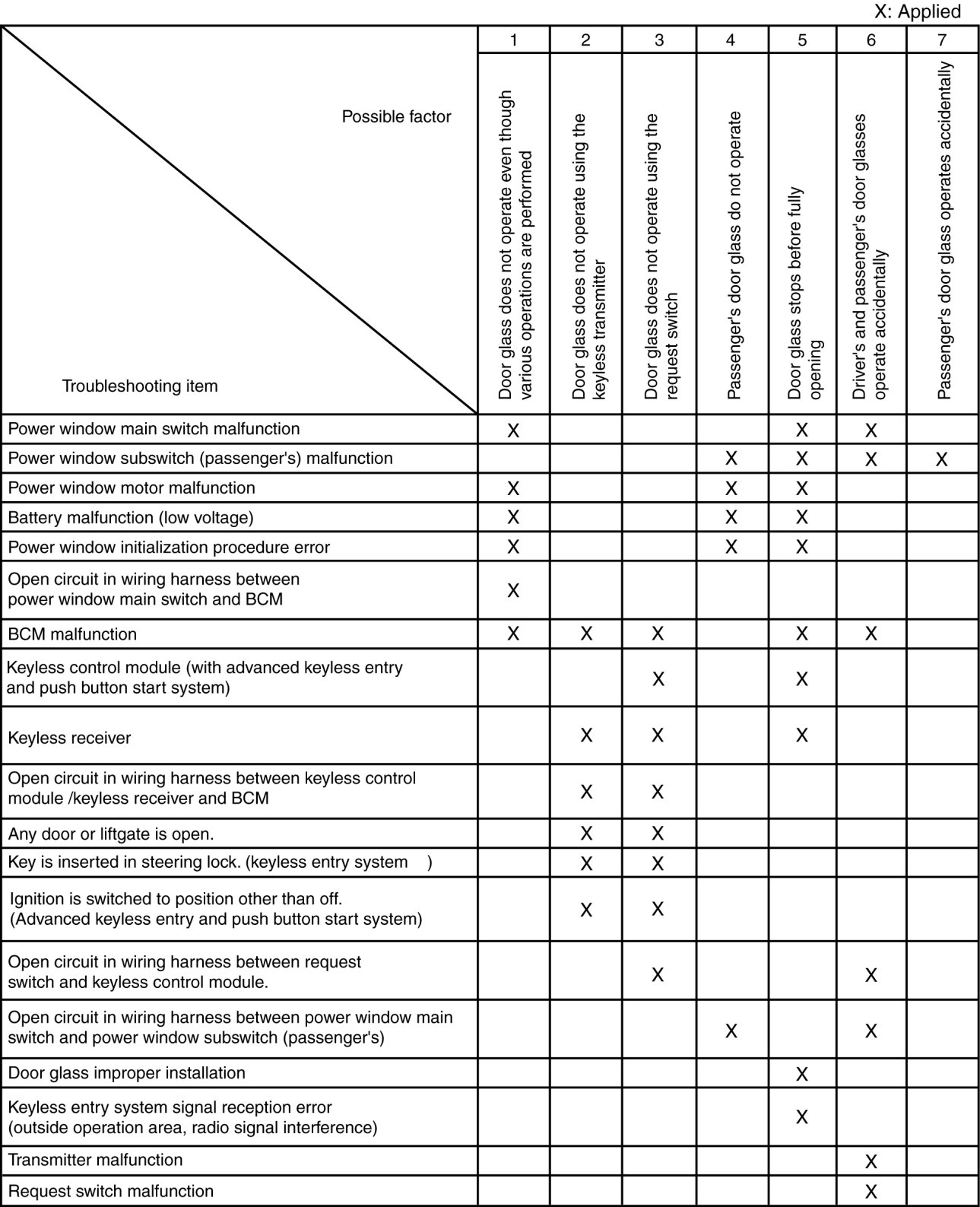

QUICK DIAGNOSTIC CHART [POWER WINDOW SYSTEM (EXTERIOR OPEN FUNCTION)]





NOTE:
- The exterior open function does not operate when the following conditions are met.

- Any door or liftgate is open.
- The key is inserted in the steering lock.
- The start knob is not in the LOCK position.

- The auto-open function (the exterior open function) does not operate if the power window initialization procedure has been reset.
- Depending on the temperature and battery conditions, the window may reverse on rare occasions.
