AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

CAUTION:
- When replacing the auto light/wiper control module, the configuration procedure must be performed before removing the auto light/wiper control module. Replacing the auto light/wiper control module without performing the configuration procedure will result in system malfunction.

NOTE:
- Auto light-off system are integrated with the auto light/wiper control module.

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). Dashboard Under Cover Removal/Installation

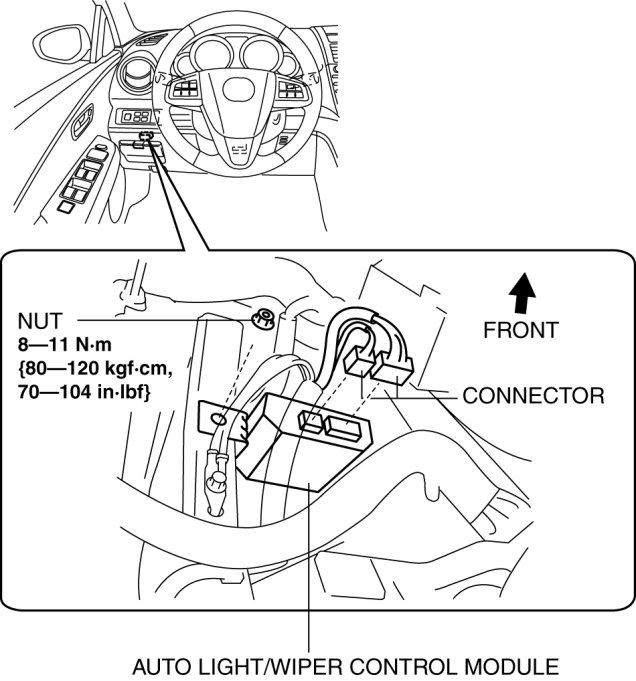

3. Remove the nut.






4. Disconnect the connectors.

5. Remove the auto light/wiper control module.

6. Install in the reverse order of removal.

7. Perform the auto light/wiper control module configuration when replacing it. Auto Light/Wiper Control Module Configuration
