Lighting Systems

AUTO LIGHT/WIPER CONTROL MODULE INSPECTION

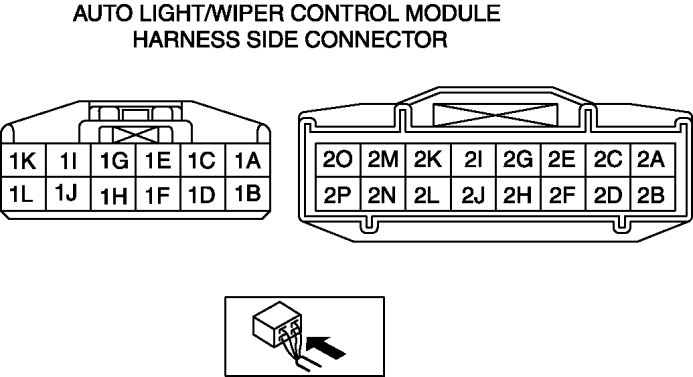

1. Measure the voltage at the auto light/wiper control module terminals as indicated below.

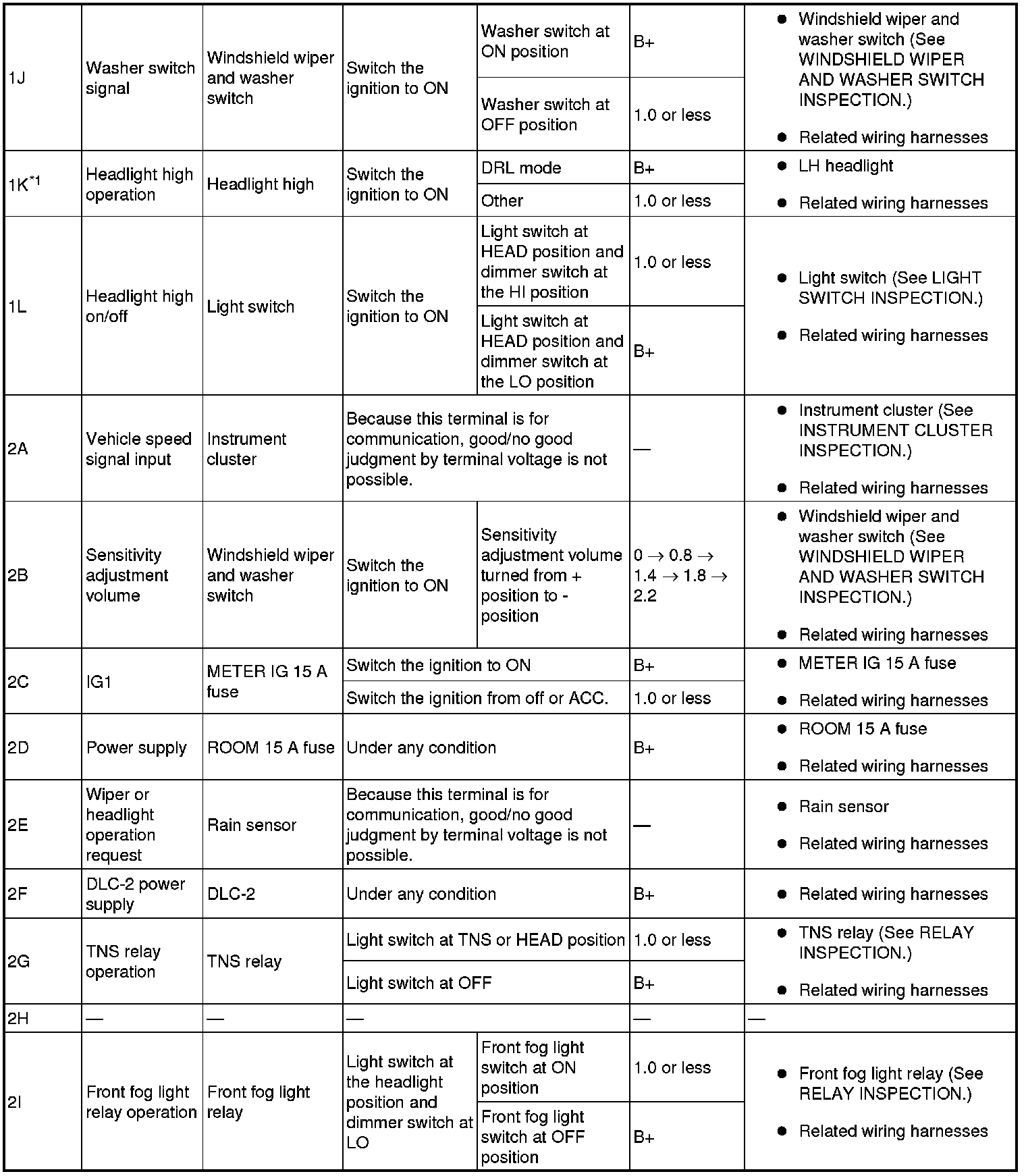

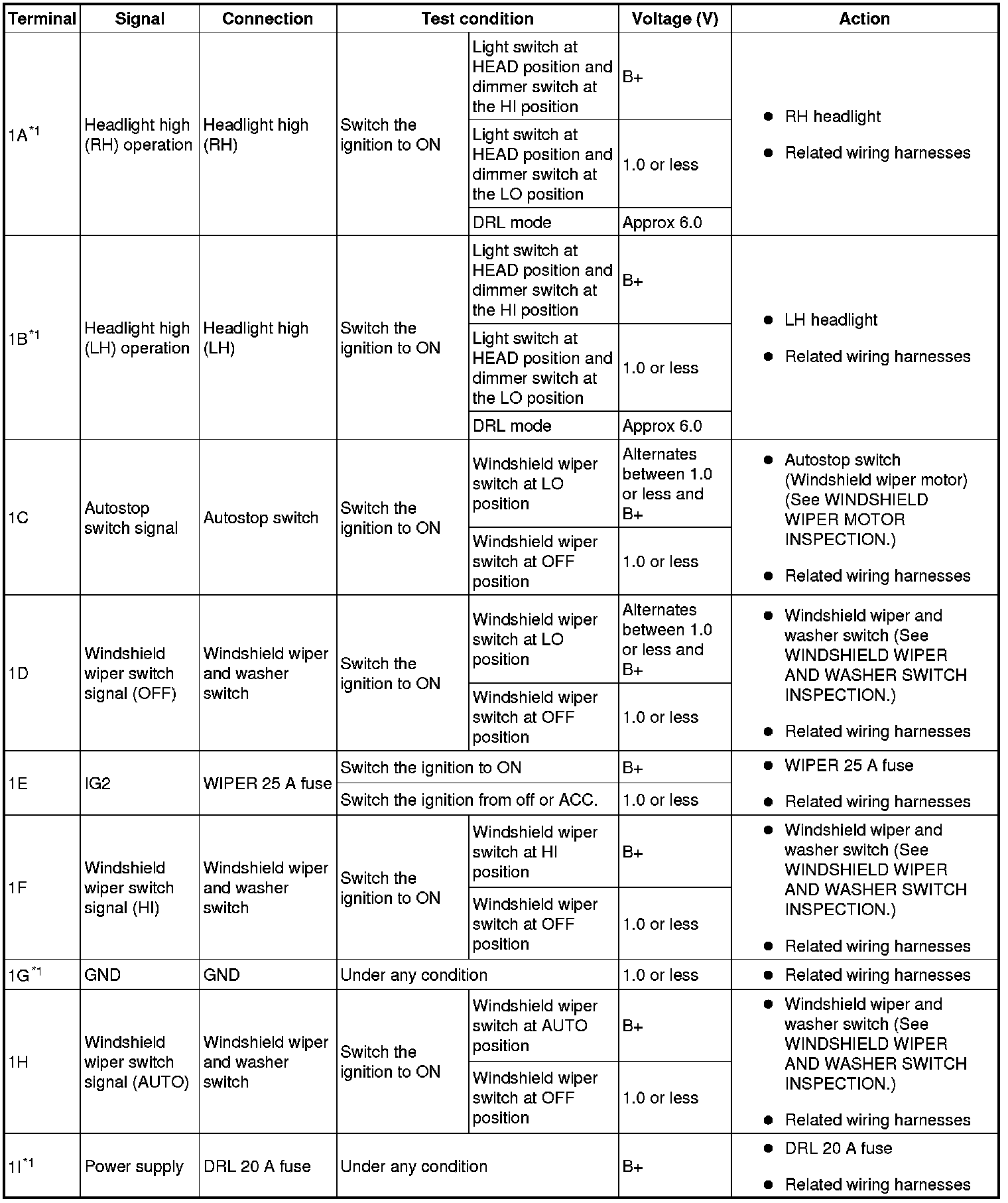

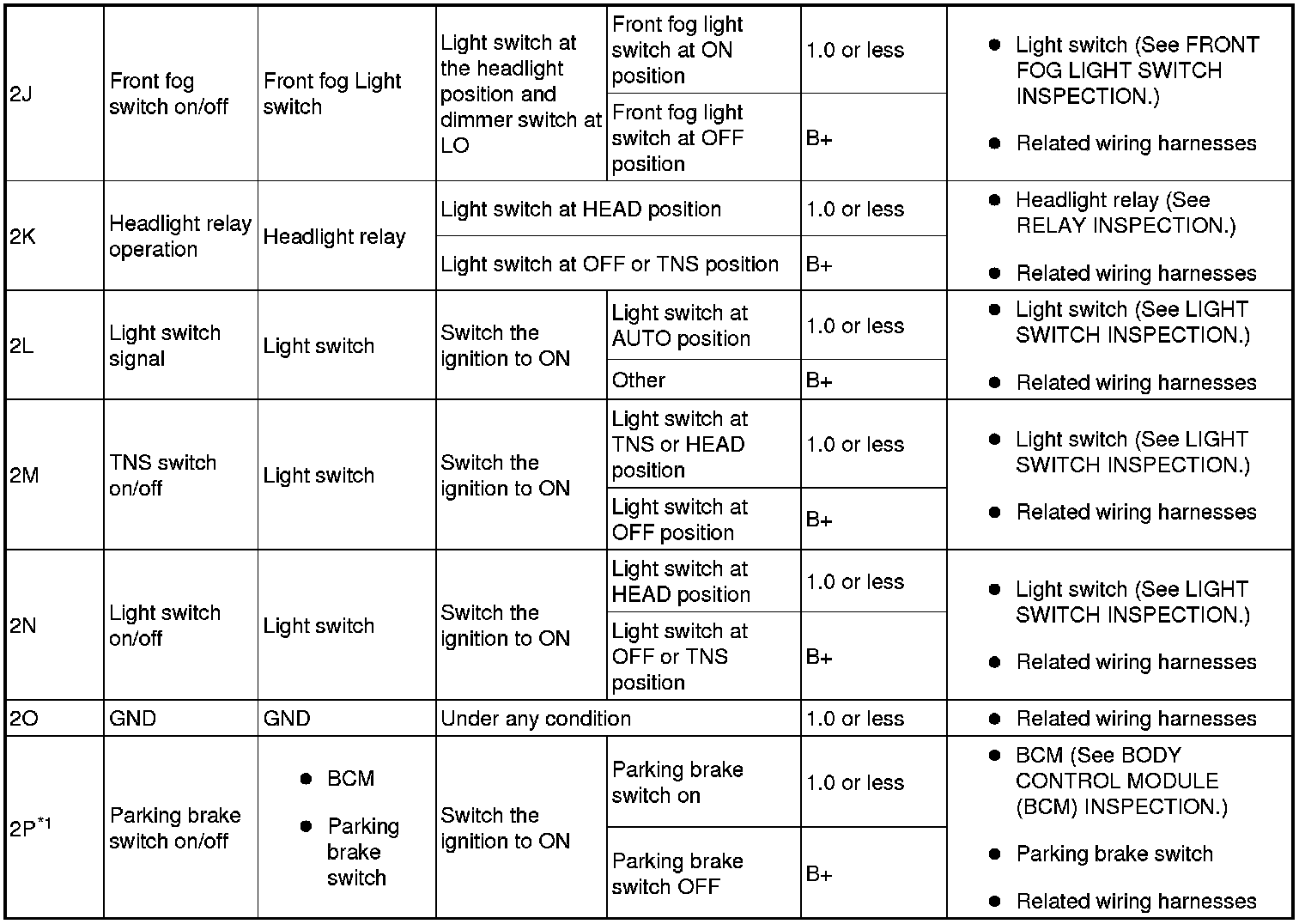

Terminal Voltage List (Reference)

















*1
With DRL only.
