Camshaft Position Sensor: Service and Repair

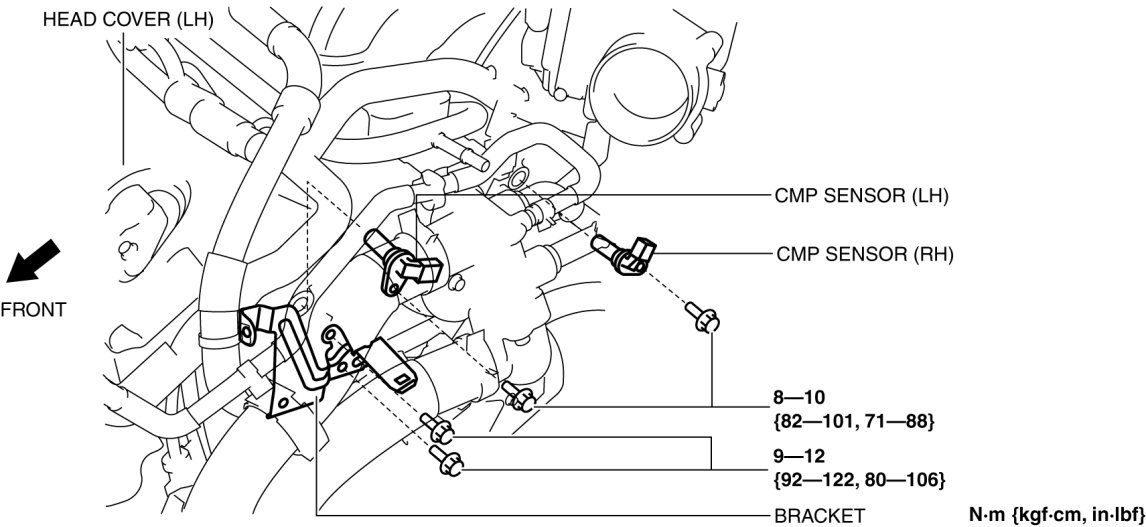

CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZI 3.7 V6]

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the resonance chamber and air cleaner assy for easier access. Service and Repair

3. Disconnect the CMP sensor connector

4. Remove the CMP sensor.






NOTE:
- Lubricate the CMP O-ring seal with clean engine oil.

5. Install in the reverse order of removal.
