Fluid Pan, A/T

Fluid Pan, A/T [AY6A-EL]

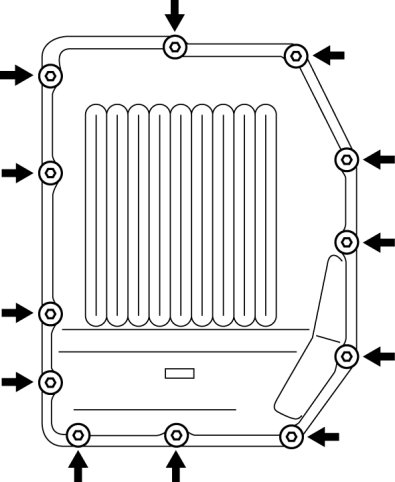

Install the new control valve body cover with new seal bolts before the applied sealant starts to harden.






CAUTION:
- Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.

Tightening torque 10-15 Nm {102-152 kgf-cm, 89-132 in-lbf}
