Engine Control System [MZR 2.5]
>>
Control System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram

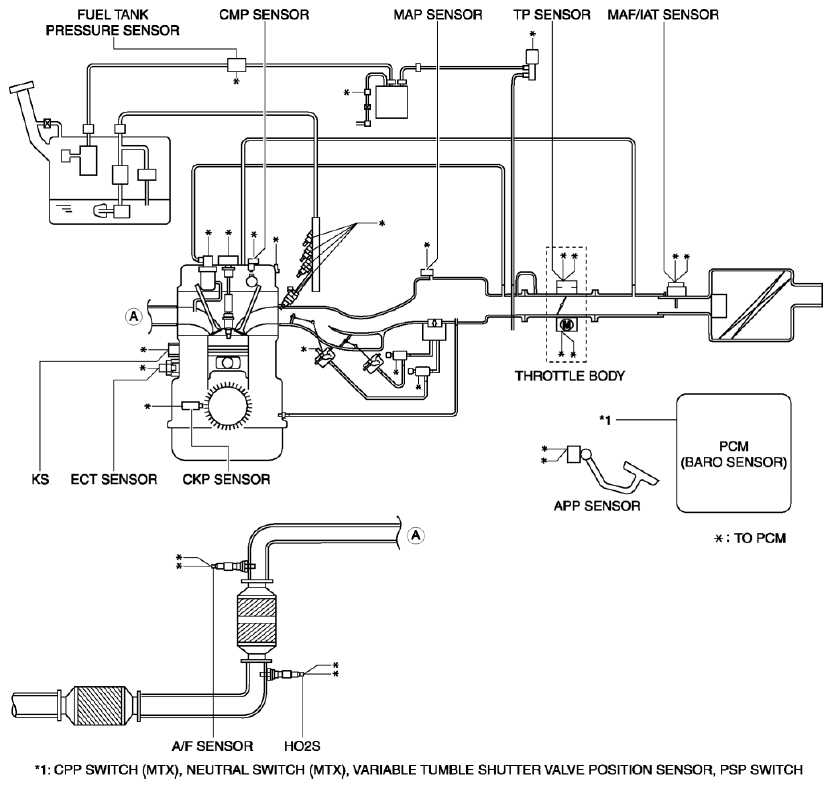

Fig 1: Control System Diagram (MZR 2.5)
