Control System Location Index

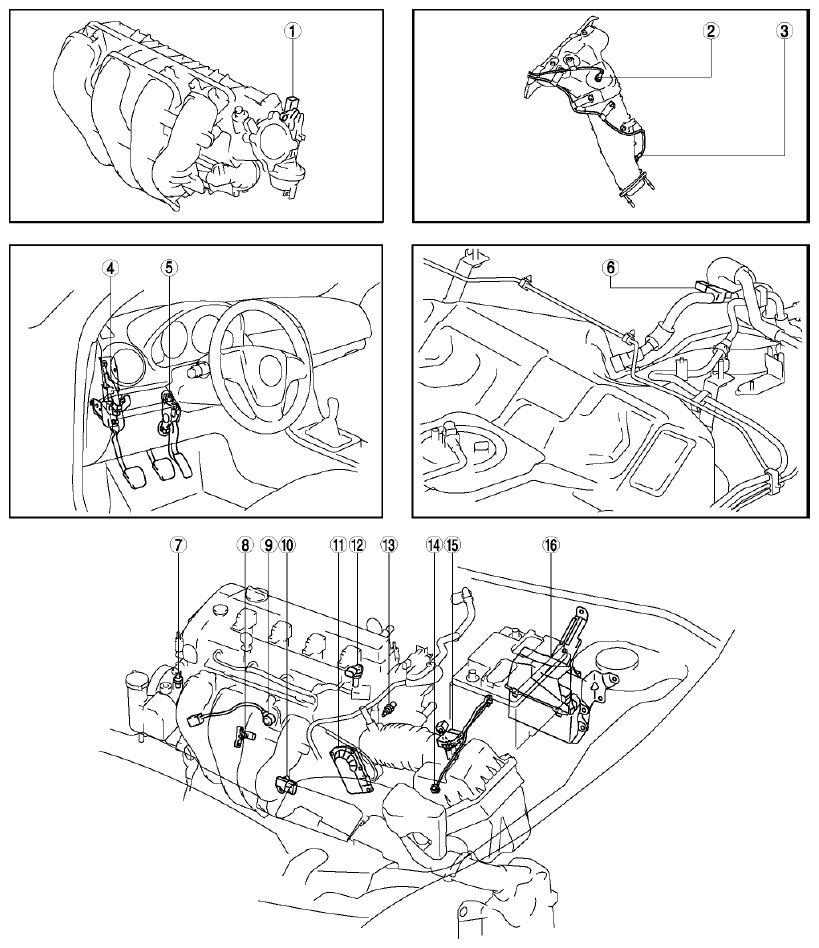

Fig 1: Identifying Control System Components - MZR 2.5 (1 Of 2)
G08140753

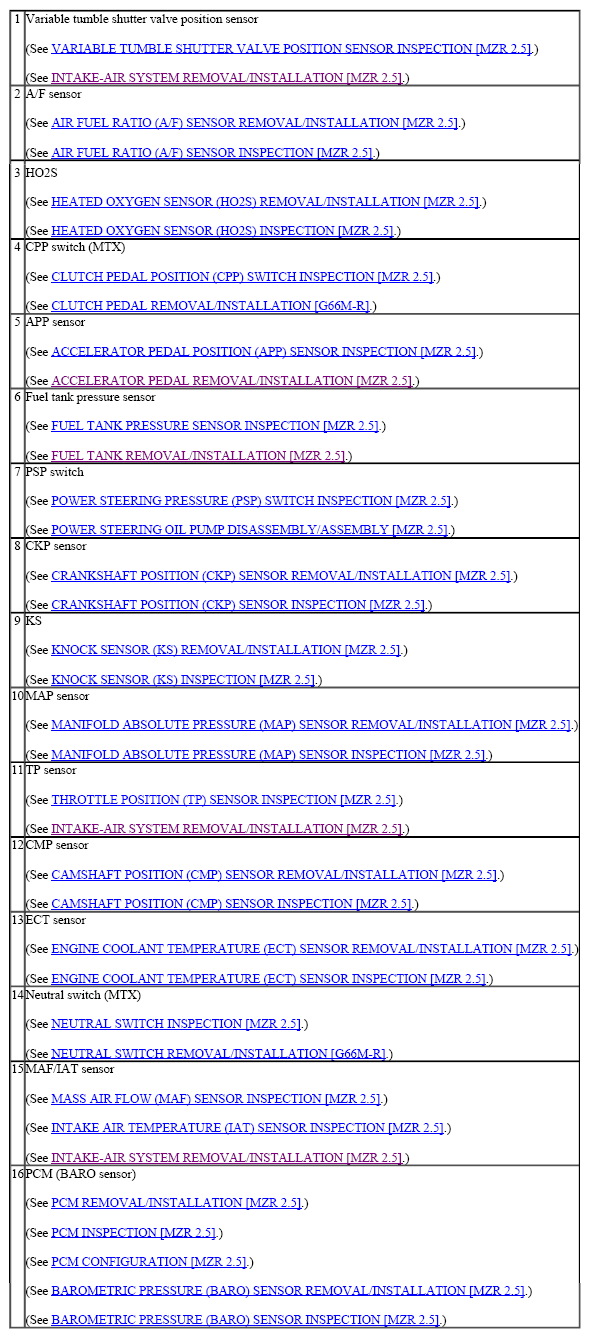

Fig 2: Identifying Control System Components - MZR 2.5 (2 Of 2)
G08140754
