Control System Wiring Diagram

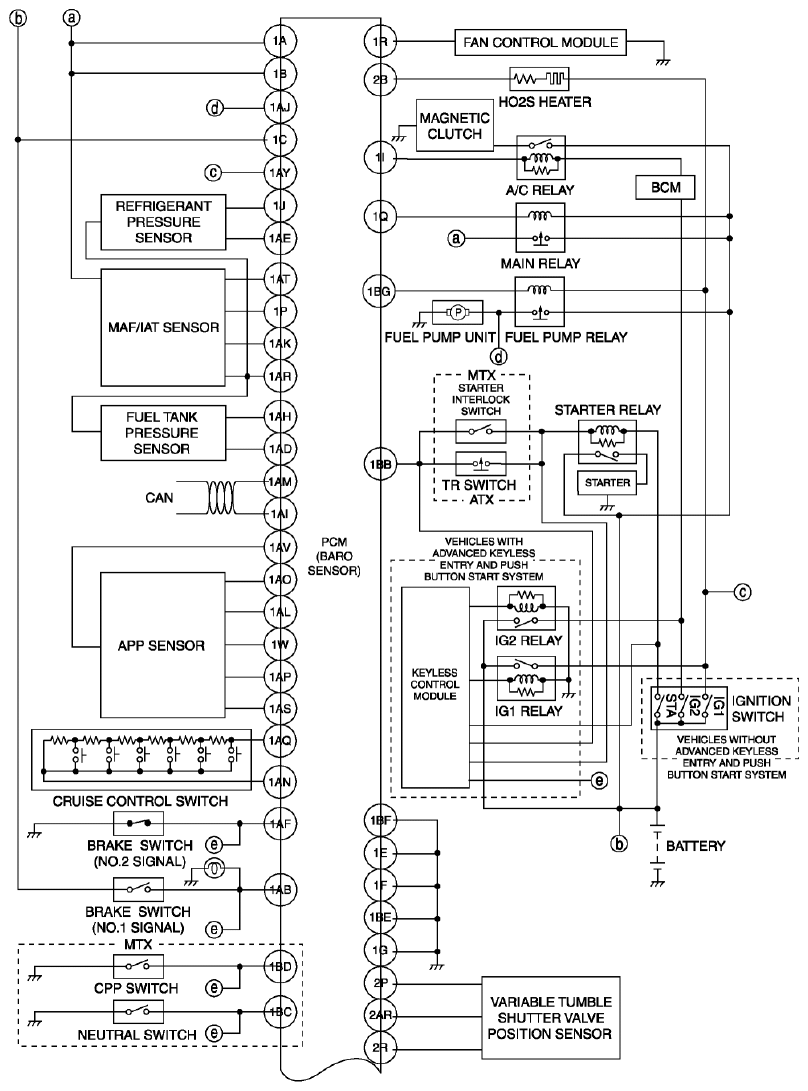

Fig 1: Control System Wiring Diagram - MZR 2.5 (1 Of 2)
G08140756

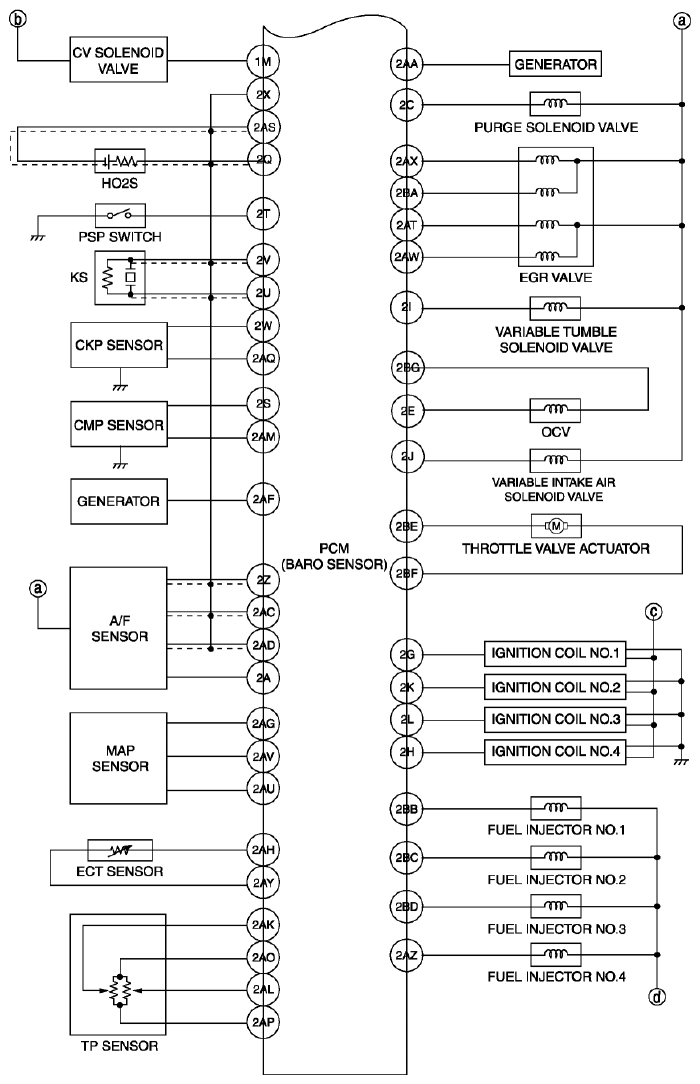

Fig 2: Control System Wiring Diagram - MZR 2.5 (2 Of 2)
G08140757
