Crankshaft Position (CKP) Sensor Removal/Installation: Removal

Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
Perform the following procedure for easier access.
1. Remove the aerodynamic under cover No.2. (See AERODYNAMIC UNDER COVER NO.2 REMOVAL/INSTALLATION .)
2. Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION .)
Disconnect the CKP sensor connector.
Remove the CKP sensor.

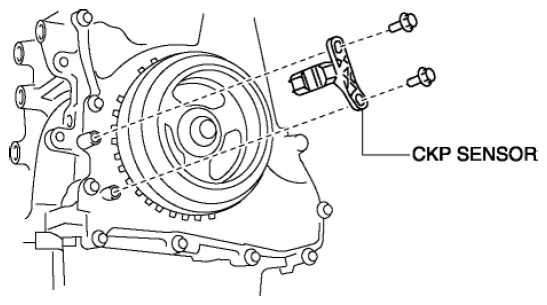

Fig 1: Identifying CKP Sensor With Bolts
