Knock Sensor (KS) Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Disconnect the KS connector.
  5. Remove the KS.

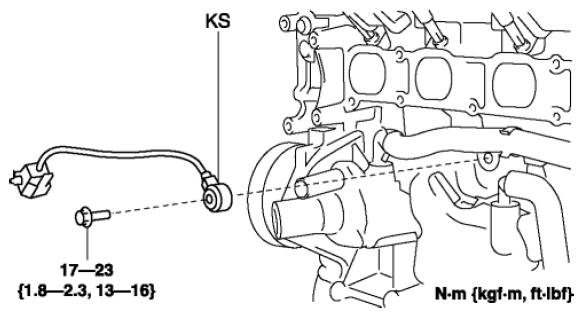

    Fig 1: Lnock Sensor And Bolt With Torque Specification
    G08140798
  6. Install in the reverse order of removal.
