Manifold Absolute Pressure (Map) Sensor Removal/Installation

  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Disconnect the MAP sensor connector.
  4. Remove the MAP sensor.

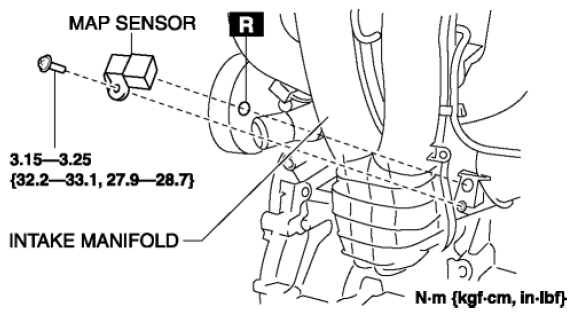

    Fig 1: MAP Sensor, Intake Manifold And Screw With Torque Specification
    G08140781
  5. Install in the reverse order of removal.
