Purge control signal

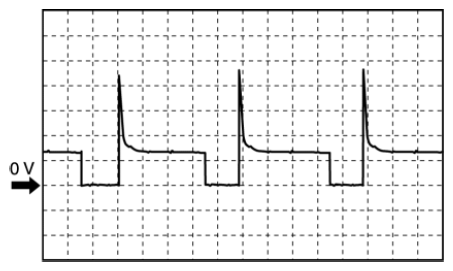

Fig 1: Purge Control Signal Waveform
PCM terminals
2C(+)-body ground(-)
Oscilloscope setting
10 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
