Maximum Steering Angle Adjustment
- Loosen the tie-rod end locknuts.
- Remove the steering gear boot clamp.

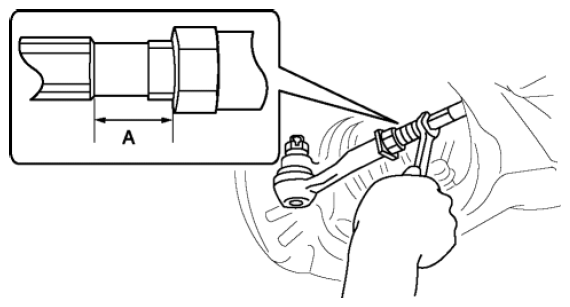

- Turn the tie rods.
Standard length L
- 15.7-22.7 mm {0.619-0.893 in}
- Turn the tie rods equally to provide the correct maximum steering angle.
- Tighten the tie-rod end locknuts.
Tightening torque
- 69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf}
- Verify that the boot is not twisted, and install the boot clamp.
- Adjust the toe-in after adjusting the steering angle.
