A/F sensor heater control

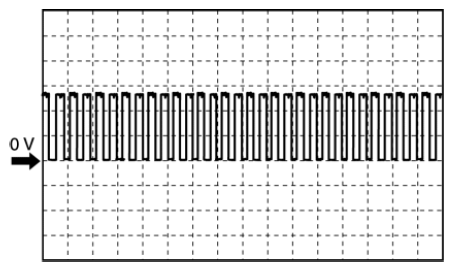

Fig 1: A/F Sensor Heater Control Waveform

PCM terminals

• 2A(+)-body ground(-)

Oscilloscope setting

• 5 V/DIV (Y), 200 ms/DIV (X), DC range

Vehicle condition

• Idle (immediately after starting the engine)
