Total Toe-in Adjustment

Loosen the locknut of the lateral link.

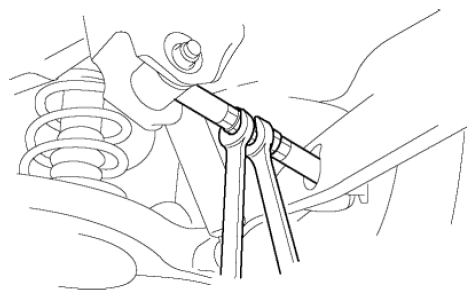

Fig 1: Loosening Locknut Of Lateral Link
Adjust the toe-in turning the adjusting link.

Fig 2: Adjusting Total Toe-In

Total toe-in
- 2±4 mm {0.08±0.16 in}
NOTE:
- Toe change amount: 0°21'/ one rotation
Tighten the locknut.

Fig 3: Tightening Locknut

Tightening torque
- 61-98 N.m {6.3-9.9 kgf.m, 45-72 ft.lbf}
