Auto-Dimming Mirror Installation

  1. Install the auto-dimming mirror.

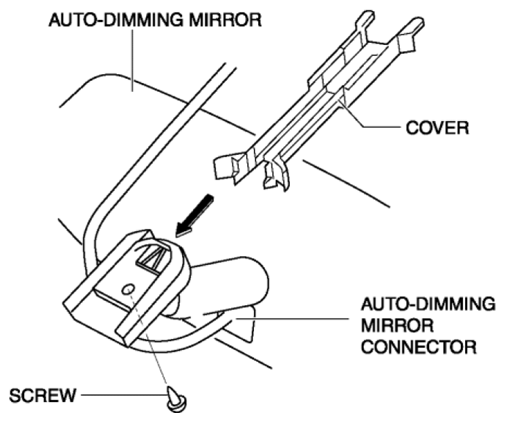

    Fig 1: Auto-Dimming Mirror Mounting Components
    G08144390
  2. Install the screw.
  3. Connect the auto-dimming mirror connector.
  4. Install the cover.
  5. Connect the negative battery cable.
