Auto-Dimming Mirror Removal

  1. Disconnect the negative battery cable.
  2. Remove the cover.

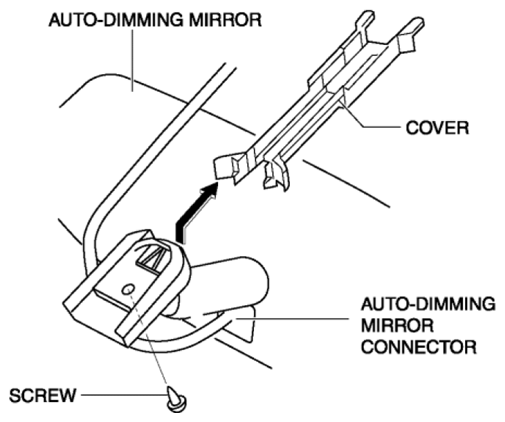

    Fig 1: Auto-Dimming Mirror Mounting Components
    G08144389
  3. Disconnect the auto-dimming mirror connector.
  4. Remove the screw.
  5. Remove the auto-dimming mirror.
