Outer Mirror Glass Installation

  1. Connect the mirror heater connectors. (vehicles with heated outer mirror)
  2. Connect the auto-dimming mirror connectors. (vehicles with auto-dimming mirror)

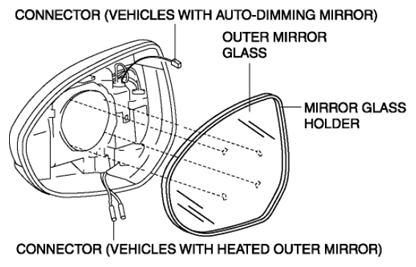

    Fig 1: Identifying Mirror Heater Connectors (Vehicles With Heated Outer Mirror) And Auto-Dimming Mirror Connectors (Vehicles With Auto-Dimming Mirror)
    G08144379
  3. Connect the BSM indicator light connector. (vehicles with BSM)
    NOTE:
    • Lightly pull the BSM indicator light connector and verify that the BSM indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector.

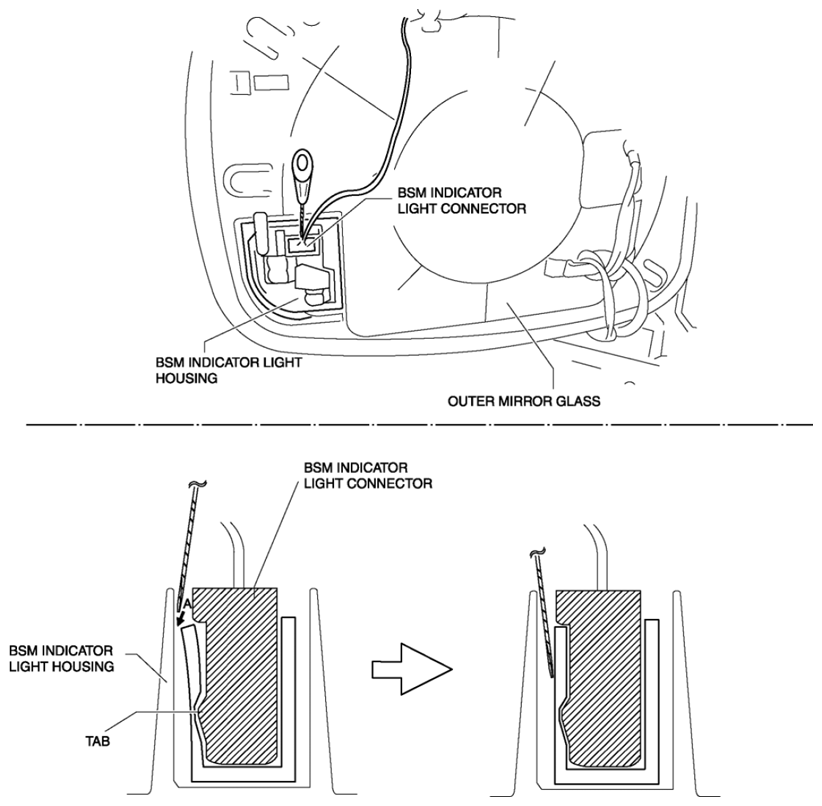

      Fig 2: Connecting BSM Indicator Light Connector (Vehicles With BSM)
      G08144380
  4. Press the mirror glass holder in the direction of the arrow as shown in the figure and install it.

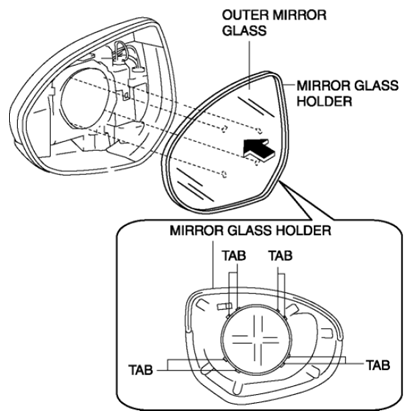

    Fig 3: Identifying Mirror Glass Holder Pressing Direction
    G08144381
