Except auto-open/close function
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the power window motor connector.

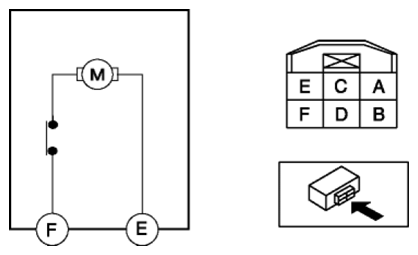

- Apply battery positive voltage and connect the ground to power window motor terminals E and F, and then inspect the power window motor operation.
- If the power window motor does not operate as indicated in the table, replace the power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
Operation Terminal E F Open Ground B+ Close B+ Ground
