Power Window SUBSWITCH Inspection: Rear

Disconnect the negative battery cable.
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table using a tester.

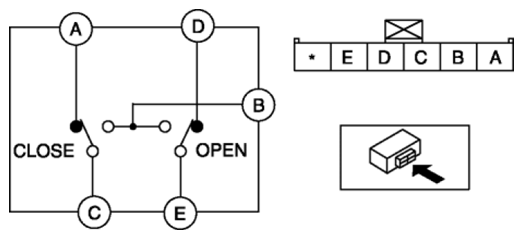

Fig 1: Identifying Power Window Subswitch Harness-Side Connector - Rear
- If not as indicated in the table, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

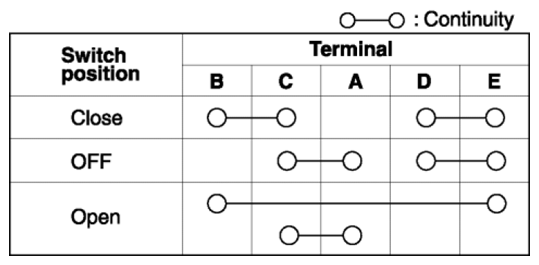

  Fig 2: Power Window Subswitch Terminals Continuity Chart
