Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor Removal/Installation

NOTE:
  • The MAF sensor and IAT sensor cannot be removed as a single unit. When replacing the MAF sensor or IAT sensor, replace it together with the MAF/IAT sensor as a single unit.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
  2. Disconnect MAF/IAT sensor connector.
  3. Remove the MAF/IAT sensor.

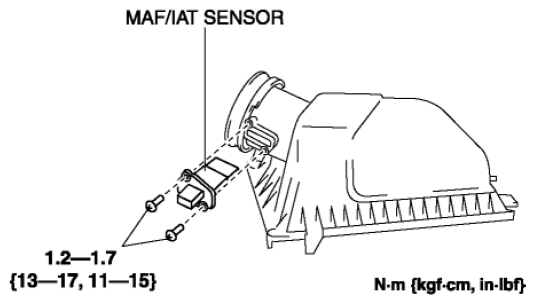

    Fig 1: MAF/IAT Sensor And Screws With Torque Specification
    G08140811
  4. Install in the reverse order of removal.
