Control System Personalization Features Setting Procedure

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Use the IDS (laptop PC) because the PDS (Pocket PC) does not support the PERSONALIZATION FEATURES SETTING PROCEDURE.
  1. Connect the M-MDS to the DLC-2.
  2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
    1. Select the "Module Programming"
  3. Then, select items from the screen menu in the following order.
    1. Select "Programmable Parameters"
    2. Select "BCM/GEM"
  4. Select the item name, and then select option.

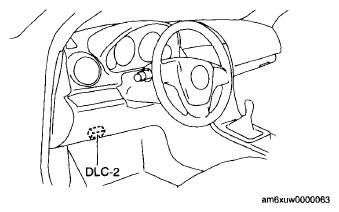

Fig 1: Identifying M-MDS To DLC-2
G06205773Courtesy of MAZDA MOTORS CORP.
CONTROL UNIT REFERENCE

M-MDS display Function Initial setting Setting content Control unit
Room lamp timer The elapsed time between the doors closing and the interior light turning off can be adjusted. 15sec 15sec, 7.5sec, 30sec, 60sec BCM
Auto room lamp (when IG-OFF) The automatic illumination function of the interior light after the ignition is switched off can be canceled. Enabled Disabled/Enabled BCM
Auto room lamp (when doors unlocked) The automatic illumination function of the interior light when the doors are locked can be canceled. Enabled Disabled/Enabled BCM
Room lamp battery saver timer The elapsed time for the interior light to automatically turn off when a door is ajar can be adjusted. 30 min 30 min/10 min BCM
Smart turn The 'turn light system' function can be set Disabled Disabled/Enabled BCM
Window closing with key Exterior close function can be set to inoperable. Enabled Disabled/Enabled BCM
Window opening with key Exterior open function can be set to inoperable Enabled Disabled/Enabled BCM
Window closing/opening with advanced-key/ transmitter Exterior open/close function can be set to inoperable. Enabled Disabled/Enabled BCM
2 stage door unlocking (with SKE) 2-step unlocking system can be set. Enabled Disabled/Enabled BCM
Auto relock timer (without SKE) Auto re-lock operation timing can be changed. 30sec Disabled, 30sec, 60sec, 90sec BCM
Answer back buzzer Answer back buzzer can be set to inoperable Enabled Disabled/Enabled BCM
