Keyless Entry System (Without Advanced Keyless Entry and Start System)

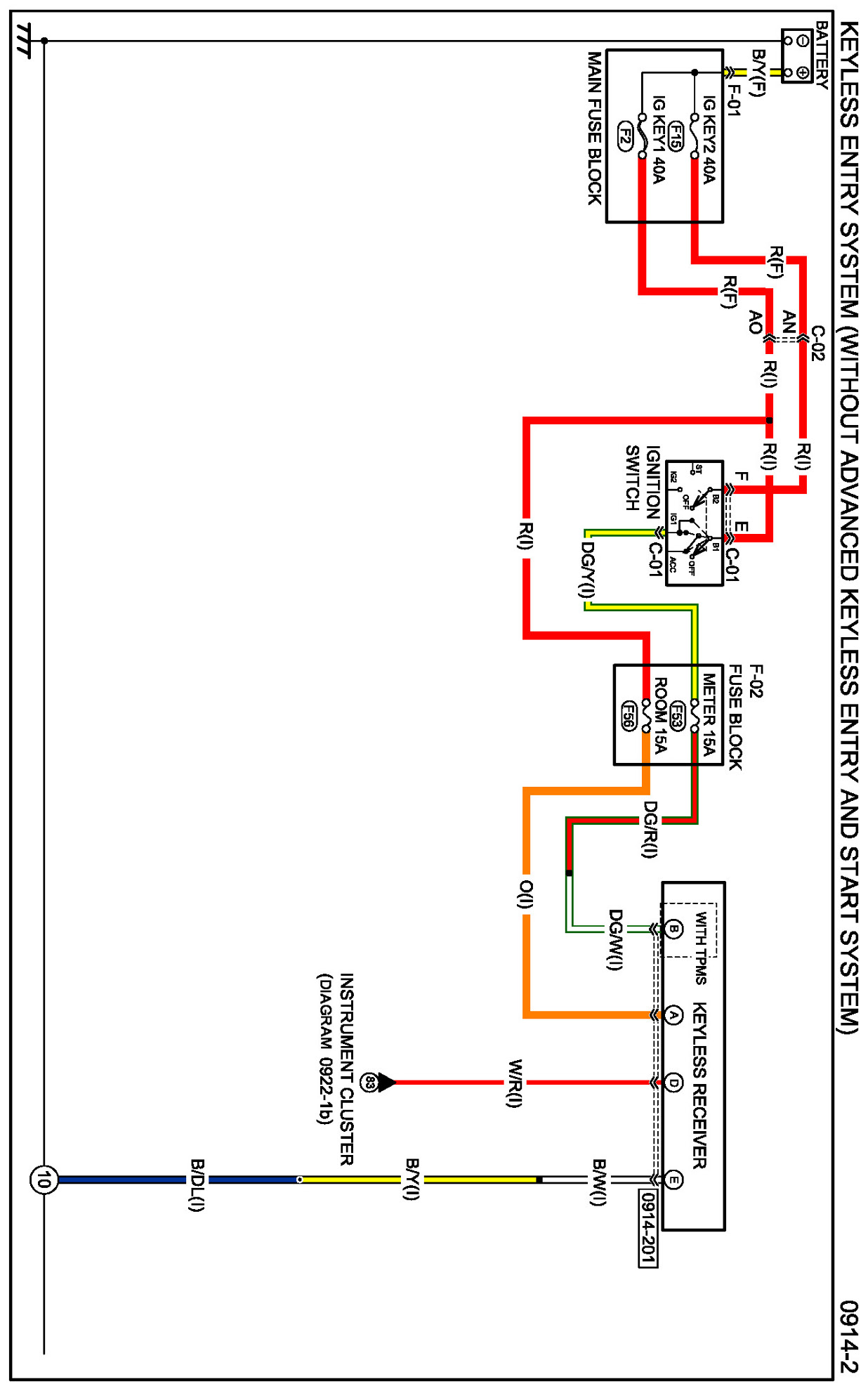

Diagram 0914-2:

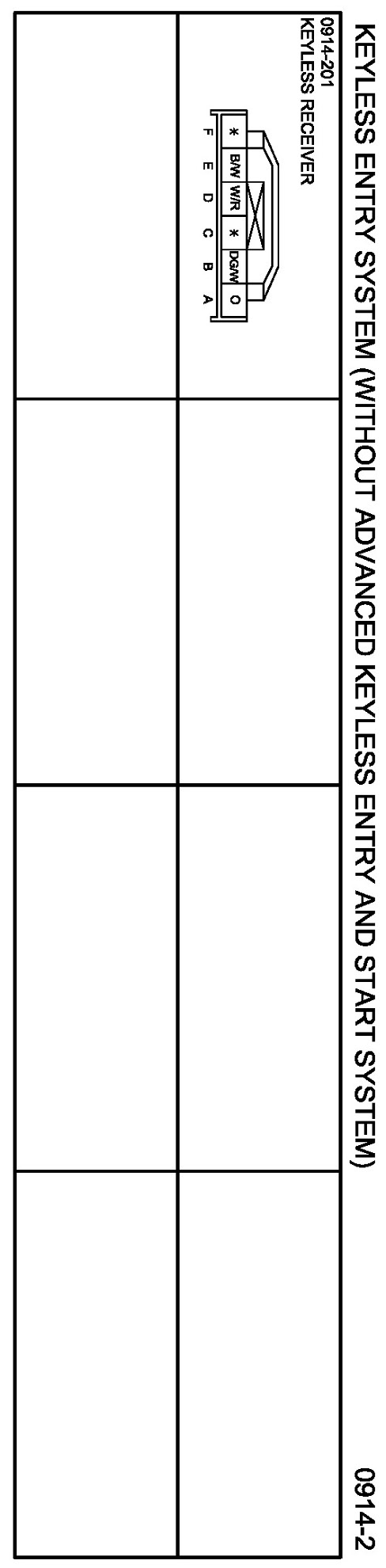

Connectors 0914-2:

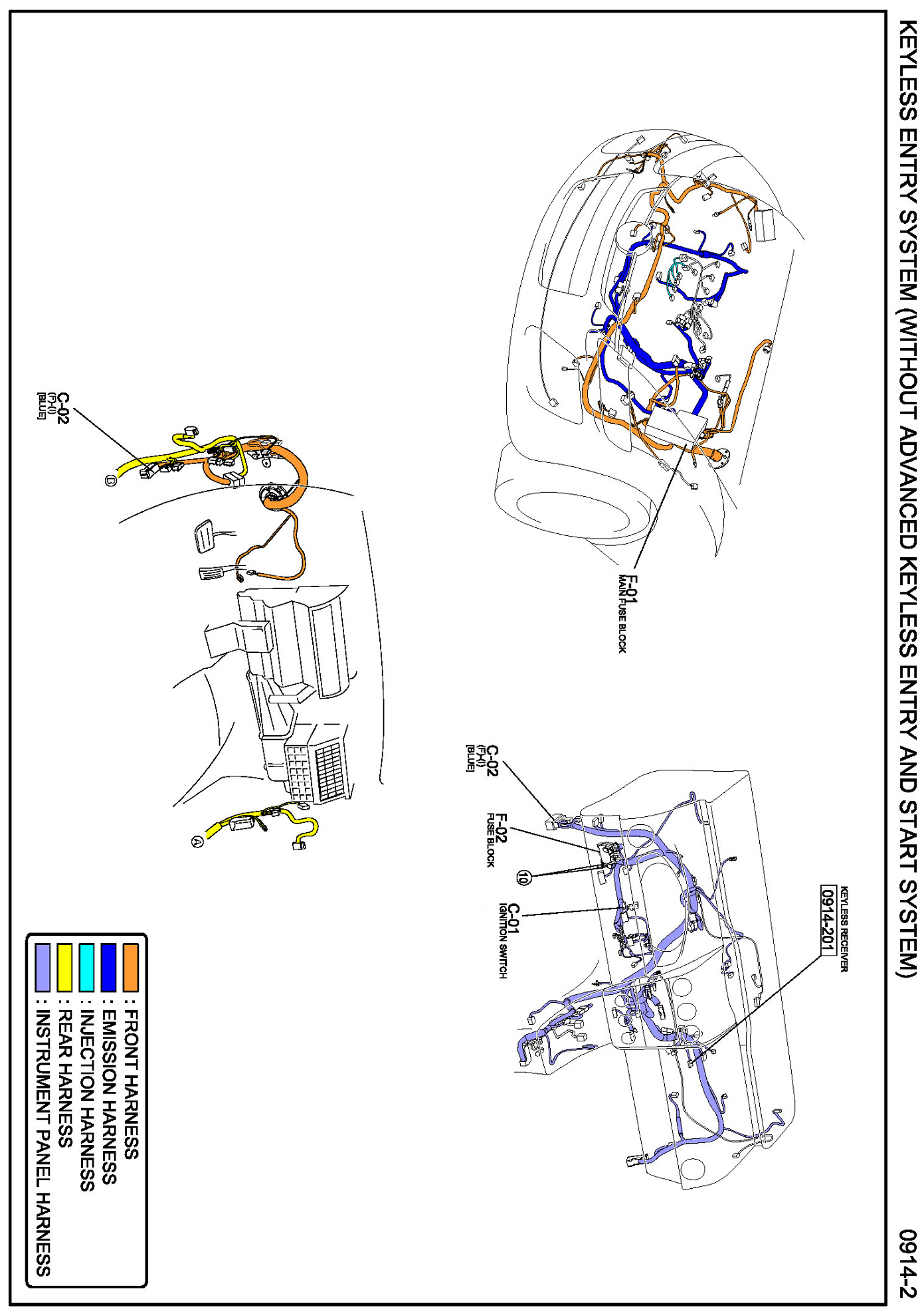

Routing View 0914-2:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
