Airflow Volume Control Dial Inspection





AIRFLOW VOLUME CONTROL DIAL INSPECTION [MANUAL AIR CONDITIONER]

1. Remove the climate control unit.

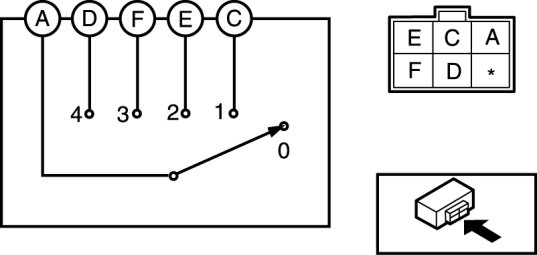

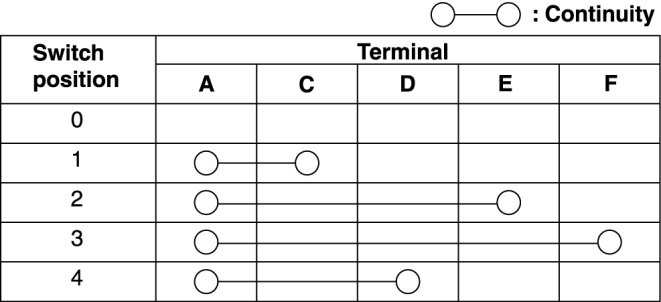

2. Inspect for continuity between the airflow volume control dial terminals using an ohmmeter.






- If not as specified, replace the airflow volume control dial.
