Vehicle Speed Sensor: Service and Repair

VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION [FS5A-EL]

CAUTION:
- If foreign materials are stuck to the sensor, disturbance by magnetic flux can cause sensor output to be abnormal and thereby negatively affect control. Make sure that foreign materials such as iron filings are not stuck to the sensor during installation.

1. Disconnect the negative battery cable.

2. Remove the under cover.

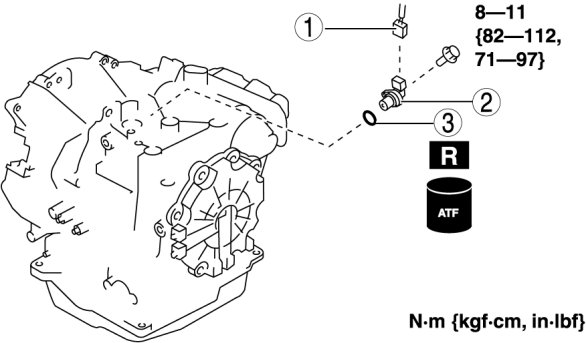

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
