System Specifications

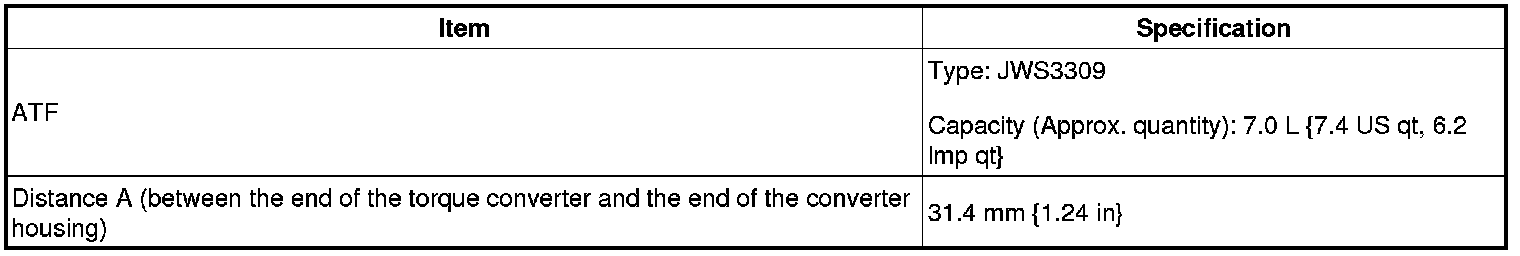

TRANSMISSION/TRANSAXLE TECHNICAL DATA

Automatic Transaxle [FS5A-EL]

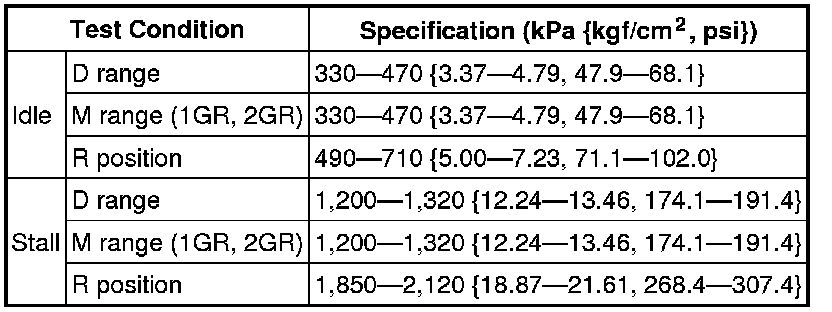

Line Pressure

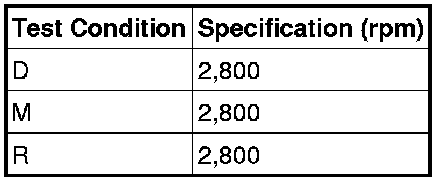

Stall Speed

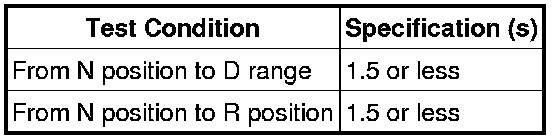

Time Lag





Automatic Transaxle [AW6A-EL, AW6AX-EL]

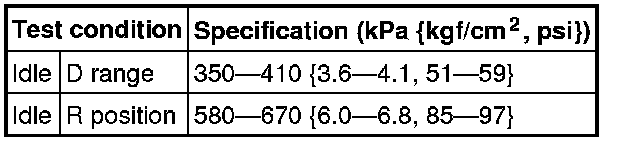

Line pressure specification (while idling)

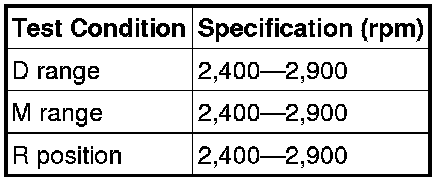

Stall speed

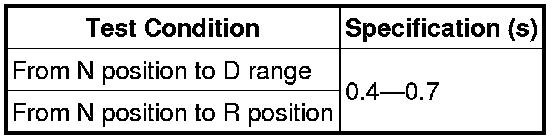

Time lag
