Ignition Switch: Testing and Inspection

IGNITION SWITCH INSPECTION

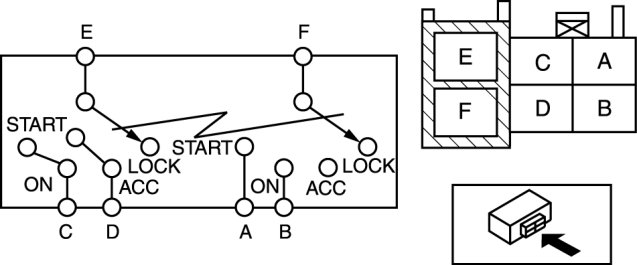

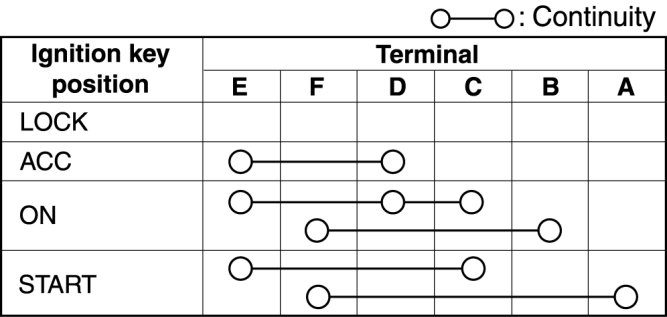

1. Verify that the continuity between the ignition switch terminals is as indicated in the table.






- If not as indicated in the table, replace the ignition switch.
