No. 1 Auto Door Lock Function Does Not Operate
No.1 AUTO DOOR LOCK FUNCTION DOES NOT OPERATE [AUTO DOOR LOCK SYSTEM]

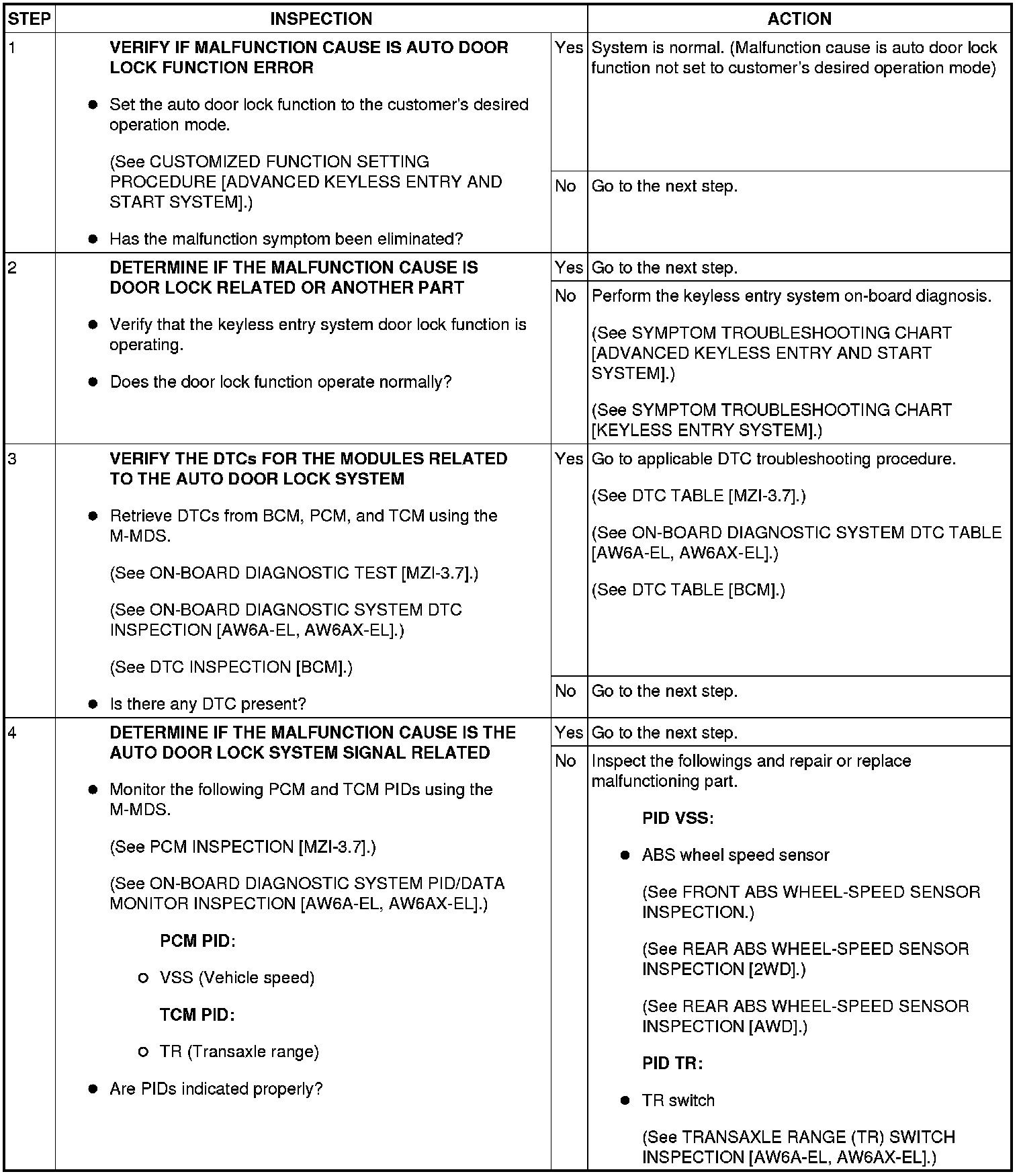

Diagnostic procedure
