Rear Climate Control Unit Removal/Installation

REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the console cover. Console Cover Removal/Installation

3. Remove the rear cooler duct. Rear Cooler Duct Removal/Installation

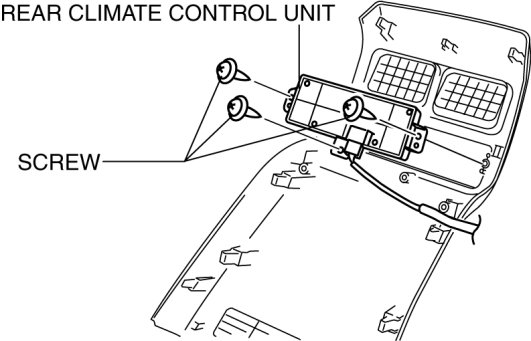

4. Remove the screws.






5. Remove the rear climate control unit.

6. Install in the reverse order of removal.
