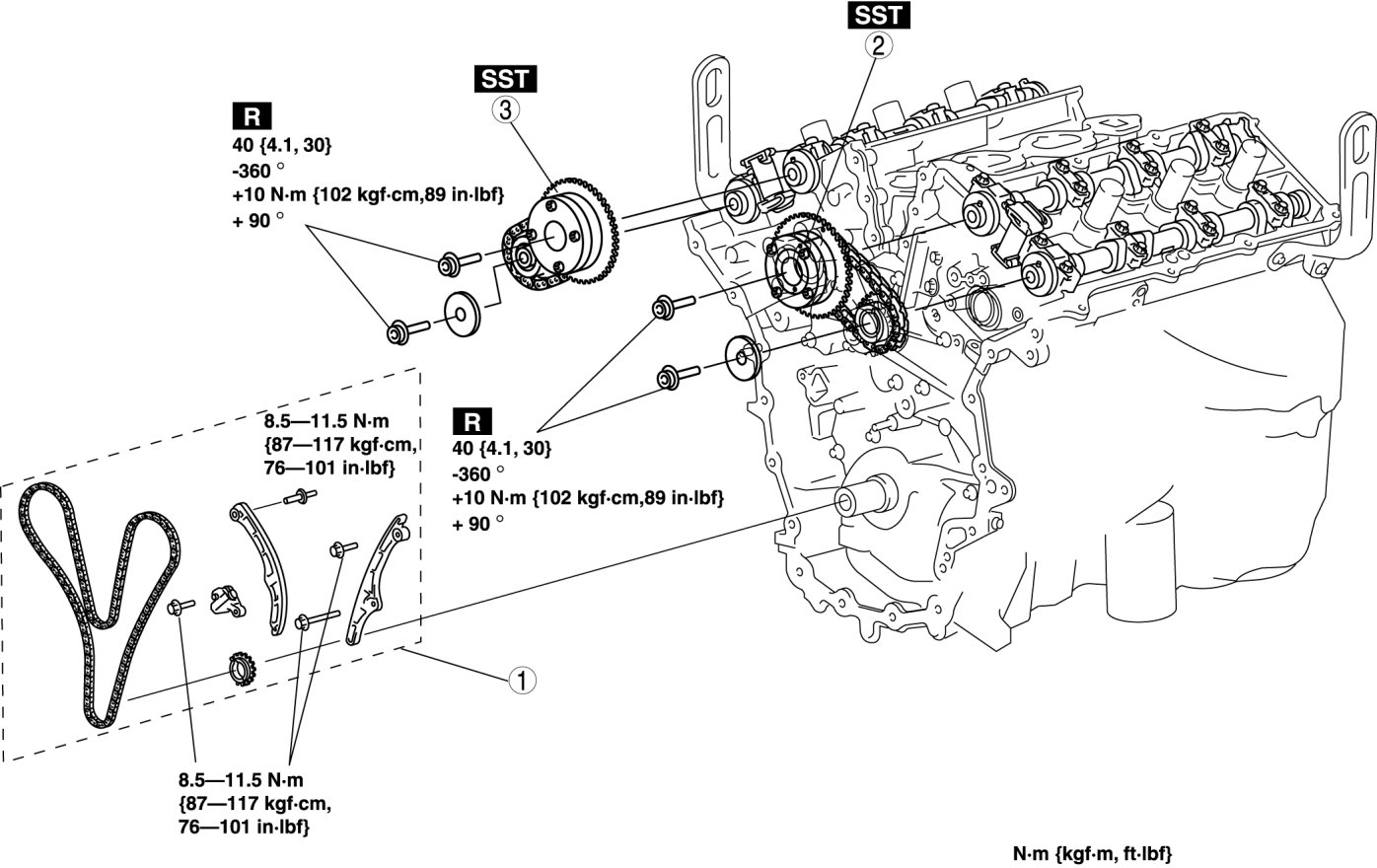

Camshaft Gear/Sprocket

Camshaft Sprocket (LH)






Tighten the new camshaft sprocket (LH) bolts using the appropriate tools following 4 steps

Tighten to 40 Nm {4.1 kgf-m, 30 ft-lbf}
Loosen 60 ° (one full turn) in reverse order.
Tighten to 10 Nm {102 kgf-cm, 89 in-lbf}.
Tighten to 90 °

Camshaft Sprocket (RH)


Tighten the new camshaft sprocket (RH) bolts using the appropriate tools following 4 steps.

Tighten to 40 Nm {4.1 kgf-m, 30 ft-lbf}
Loosen 360 ° (one full turn) in reverse order.
Tighten to 10 Nm {102 kgf-cm, 89 in-lbf}
Tighten to 90 °
