System Specifications





SUSPENSION TECHNICAL DATA

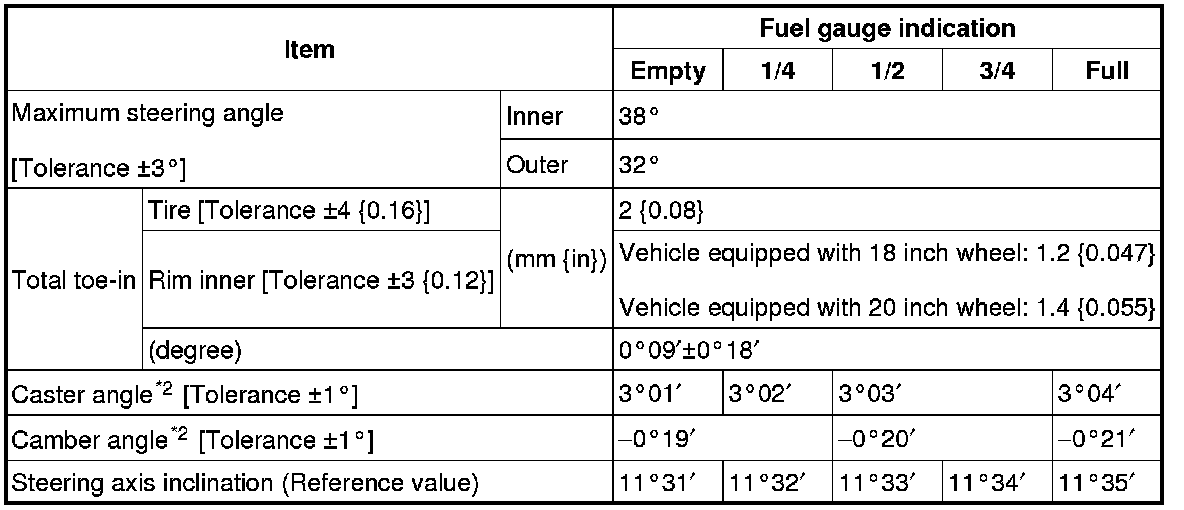

Front wheel alignment [2WD] (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

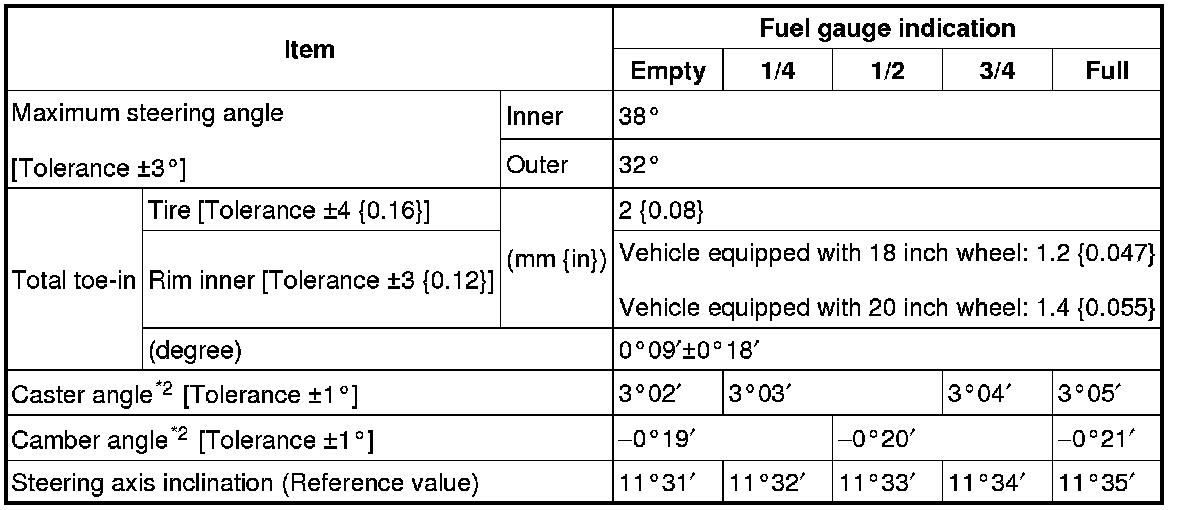

Front wheel alignment [AWD] (Unloaded)*1





*1
Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

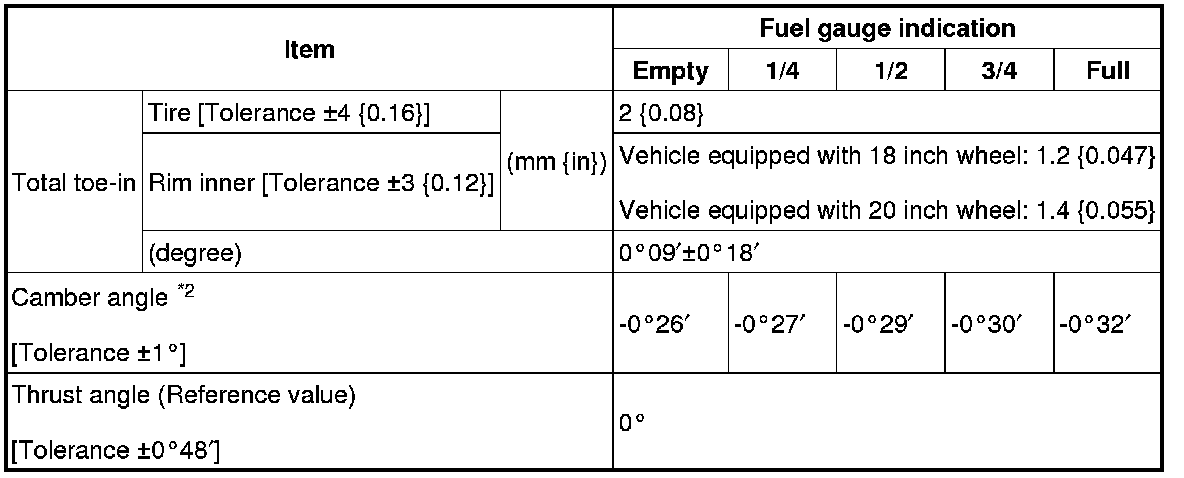

Rear wheel alignment [2WD] (Unloaded) *1





*1
Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.
Rear wheel alignment [AWD] (Unloaded) *1





*1
Engine coolant and engine oil are at specified level. Jack and tools are in designated position.
*2
Difference between left and right must not exceed 1°30'.

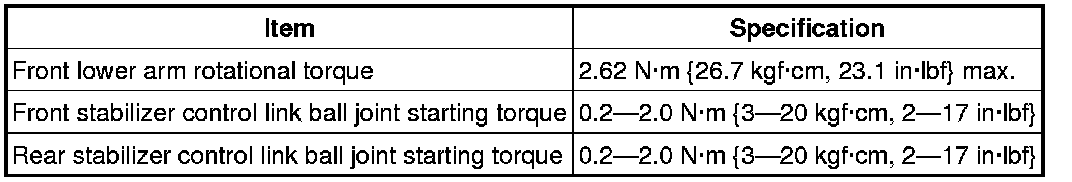

Suspension





Standard tire

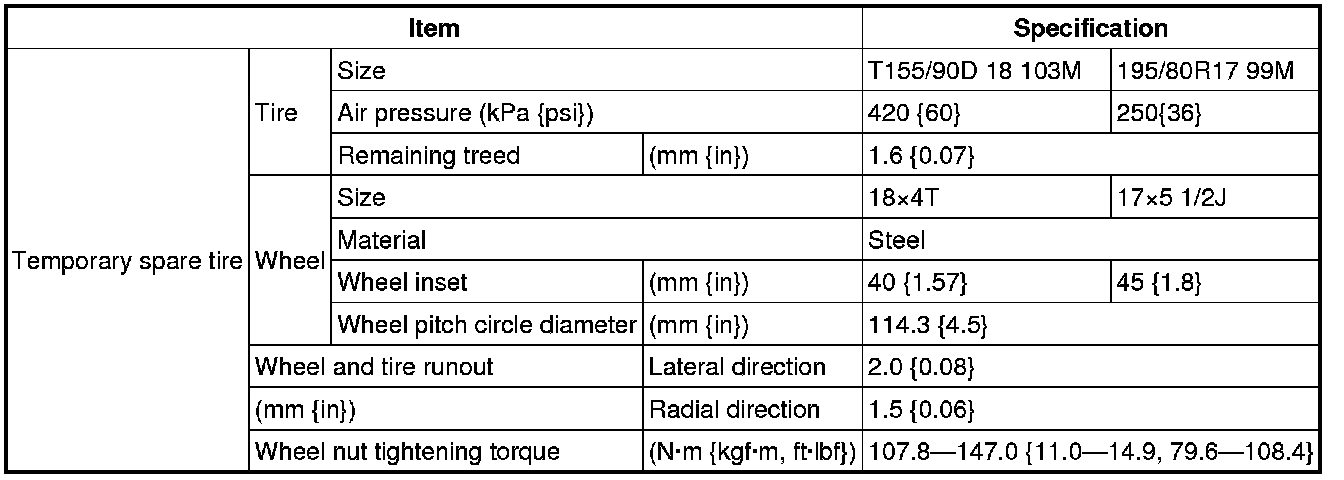

Temporary spare tire
