Keyless Entry Receiver: Service and Repair

KEYLESS RECEIVER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Center panel Center Panel Removal/Installation

f. Upper column cover Service and Repair

g. Meter hood Meter Hood Removal/Installation

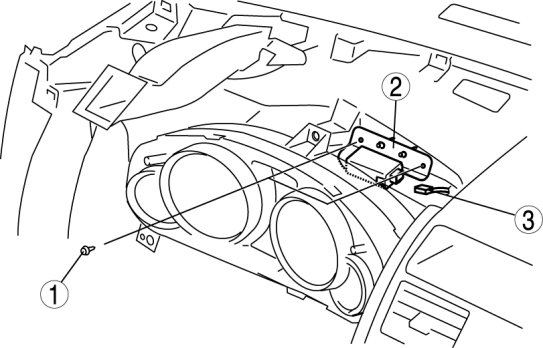

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
