Pinout Values and Diagnostic Parameters

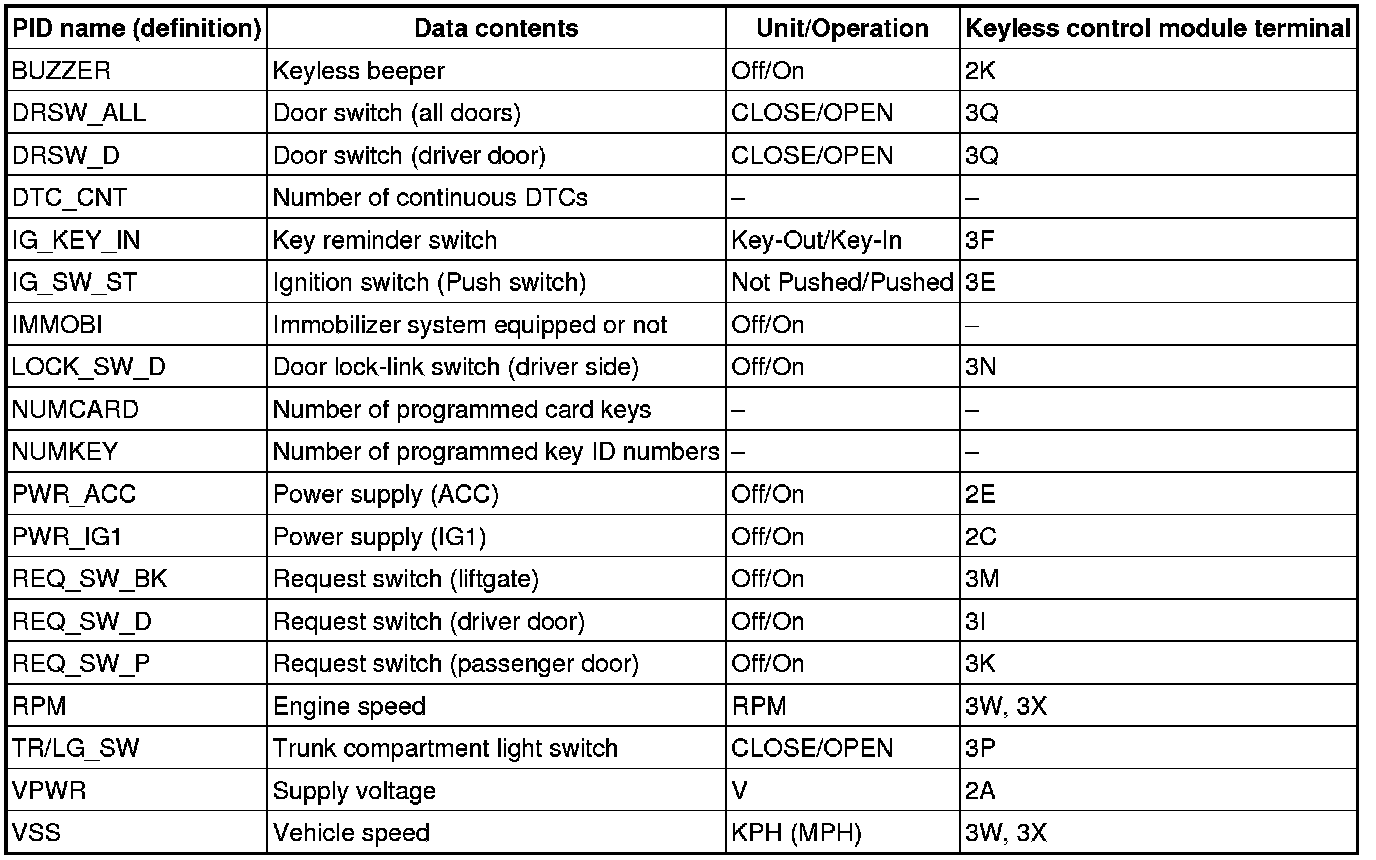

PID/DATA MONITOR TABLE [ADVANCED KEYLESS ENTRY AND START SYSTEM]
PID/data monitor table
Active command mode table
PID/DATA MONITOR TABLE [ADVANCED KEYLESS ENTRY AND START SYSTEM]
PID/data monitor table
Active command mode table
