Component Tests and General Diagnostics

KEYLESS BEEPER INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the front mudguard. Service and Repair

3. Remove the keyless beeper. Service and Repair

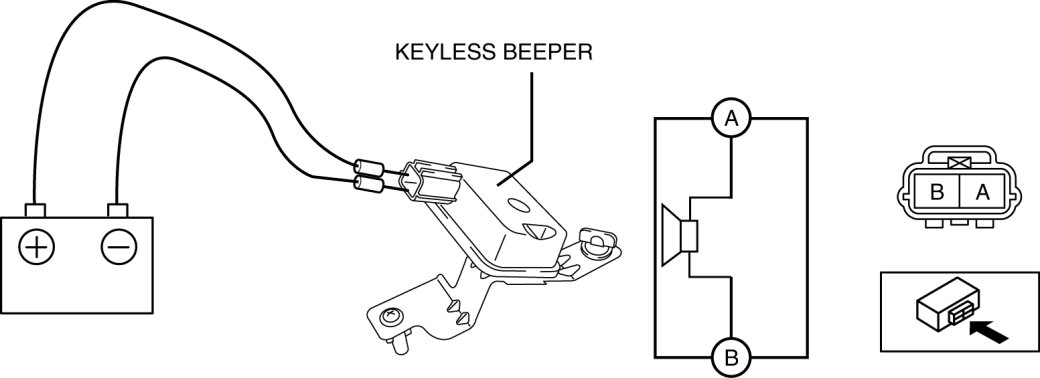

4. When applying battery positive voltage to the keyless beeper, verify that an electromagnetic sound is heard.






- If the sound cannot be verified, replace the keyless beeper.
