Knock Sensor: Service and Repair

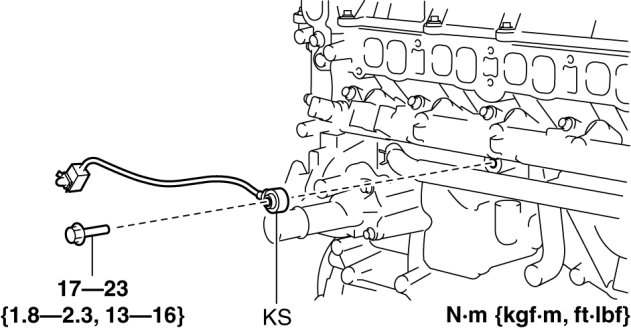

KNOCK SENSOR (KS) REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]

CAUTION:
- Be careful not to impact the sensor.
- Verify that there is no debris between the sensor and the cylinder block before installing.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the intake manifold. Service and Repair

4. Disconnect the KS connector.

5. Remove the KS.






6. Install in the reverse order of removal.
