Powertrain Management: Description and Operation

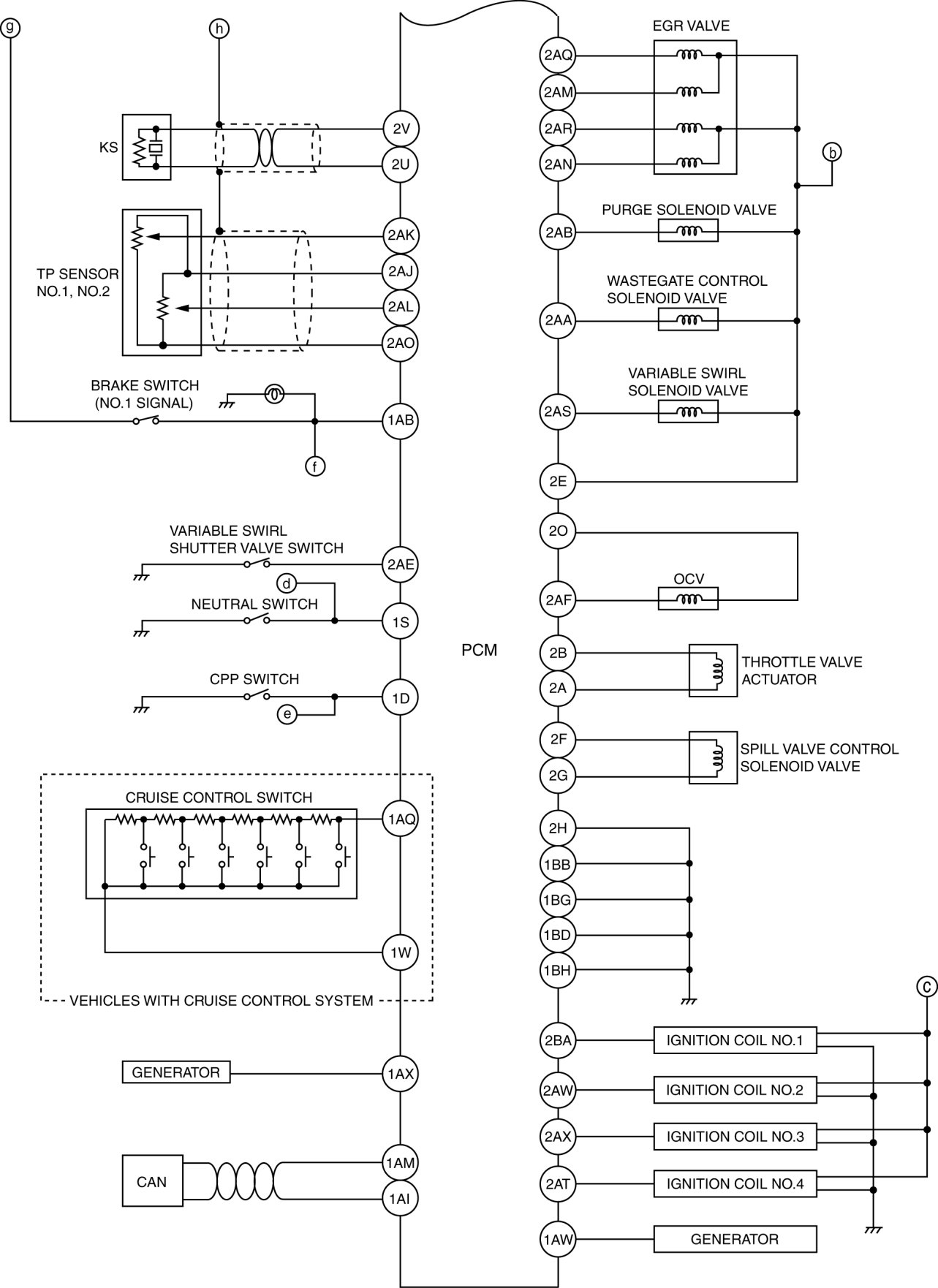

CONTROL SYSTEM WIRING DIAGRAM [MZR 2.3 DISI Turbo]
*1
Vehicles with advanced keyless entry and push button start system
*2
Vehicles without advanced keyless entry and push button start system

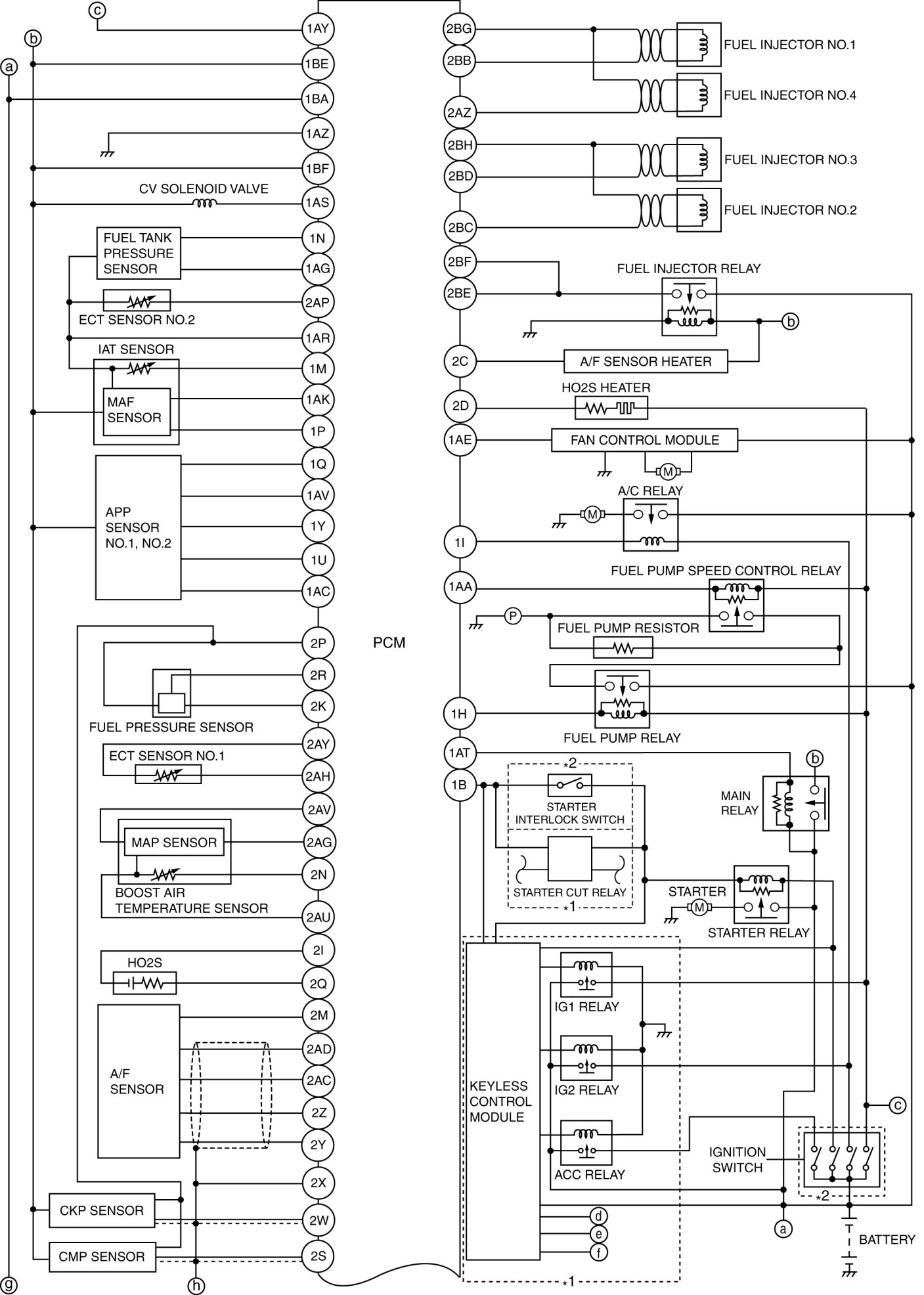

CONTROL SYSTEM WIRING DIAGRAM [MZR 2.3 DISI Turbo]
*1
Vehicles with advanced keyless entry and push button start system
*2
Vehicles without advanced keyless entry and push button start system
