Rear Wheel Alignment

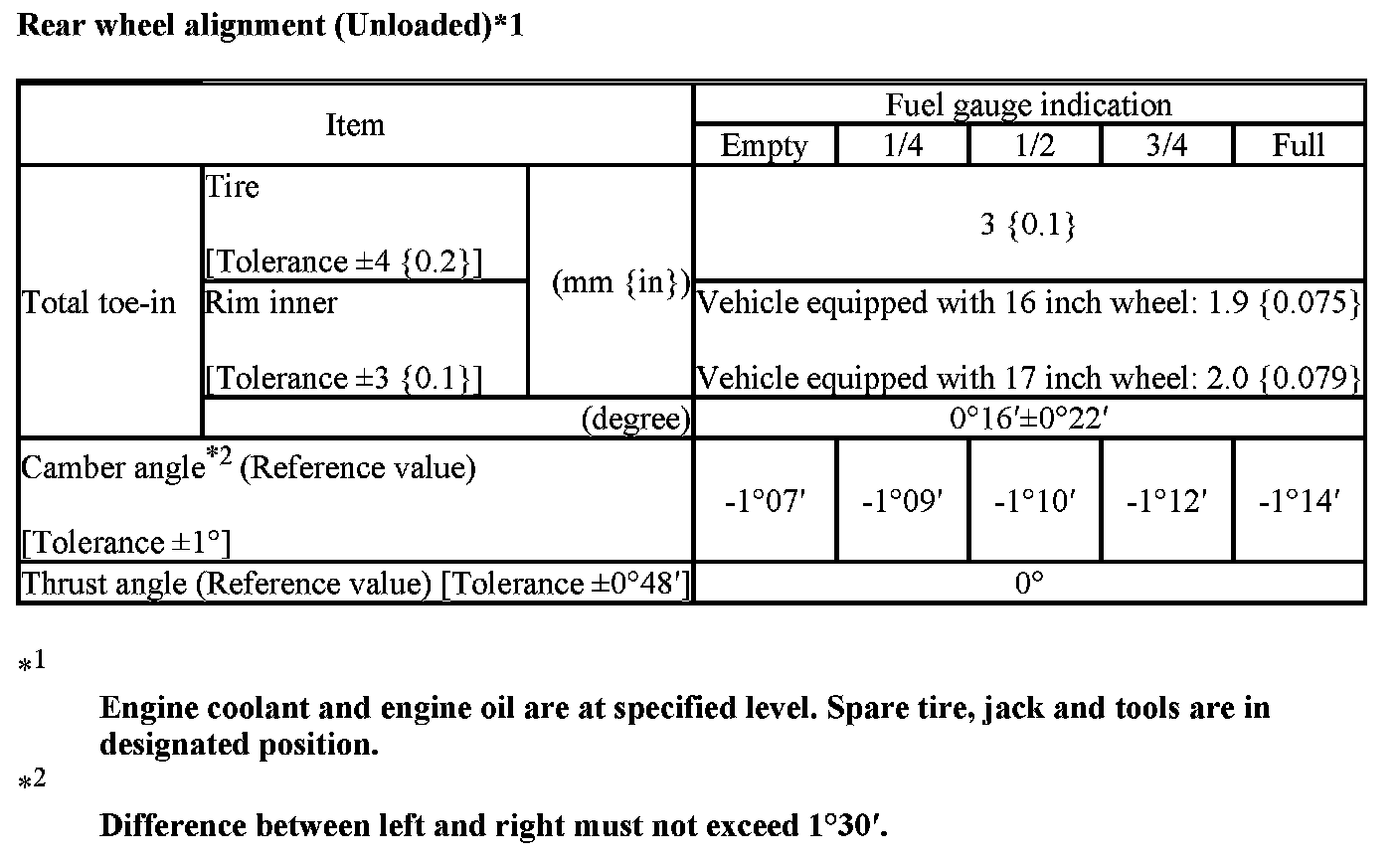

REAR WHEEL ALIGNMENT [DIMENSIONS]







Total Toe-in Adjustment

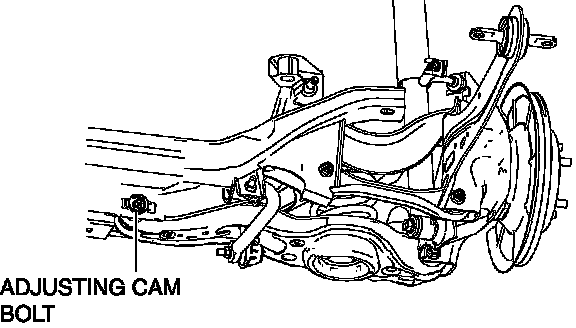

1. Loosen the installation nut of the adjusting cam bolt.

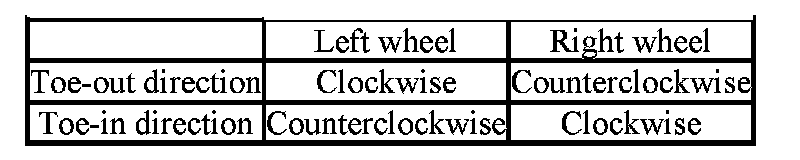

2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.












3. Tighten the nut.

Tightening torque
- 80 - 100 N.m {8.2 - 10 kgf.m, 60 - 73 ft.lbf}
