DSC Off Switch Inspection

Remove the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

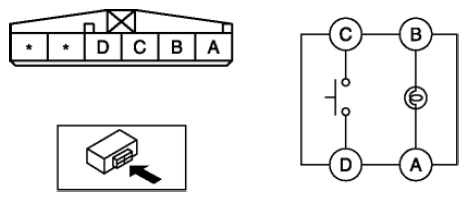

Fig 1: Identifying DSC OFF Switch Connector Terminals
- If not as indicated in the table, replace the DSC OFF switch. (See DSC OFF SWITCH REMOVAL/INSTALLATION .)

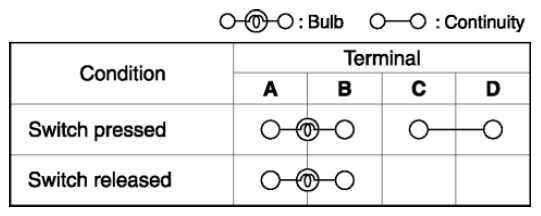

  Fig 2: DSC OFF Switch Continuity Chart
