Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and DSC HU/CM.

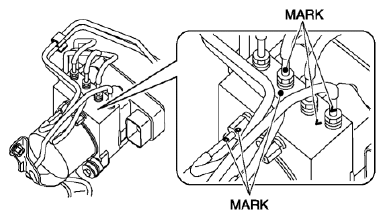

    Fig 1: Identifying Alignment Mark On Brake Pipe And DSC HU/CM
    G08142546
  2. Affix protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.
  4. Adhere protective tape to the installation area of the DSC HU/CM brake pipe to prevent foreign material penetration.
