Clearance Inspection: Notes

Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.

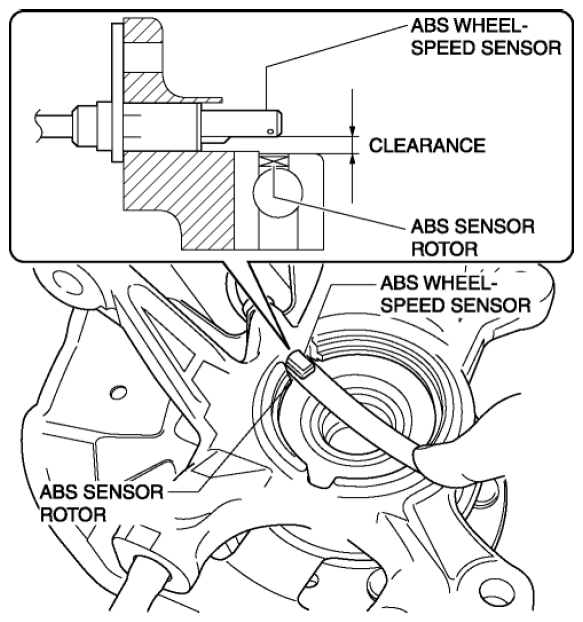

Fig 1: Measuring Gap Between ABS Sensor Rotor And ABS Wheel-Speed Sensor Using Feeler Gauge
- If not within the specification, verify the following items and repair or replace if necessary.
  - Is there deformation or damage to the ABS sensor rotor?
  - Is there deformation or damage to the ABS wheel speed sensor?
  - Is there foreign material adhering?
  Clearance
- 0.6-1.5 mm {0.03-0.05 in}
