Rear Abs Wheel-Speed Sensor Removal/Installation
- Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
- Remove the rear side seat back. (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION .)
- Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
- Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
- Disconnect the rear ABS wheel-speed sensor connector.

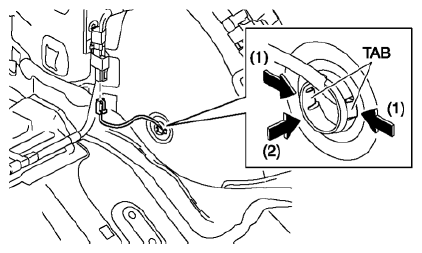

- Press the rear ABS wheel-speed sensor tabs and press out the sensor toward the outside of the vehicle.

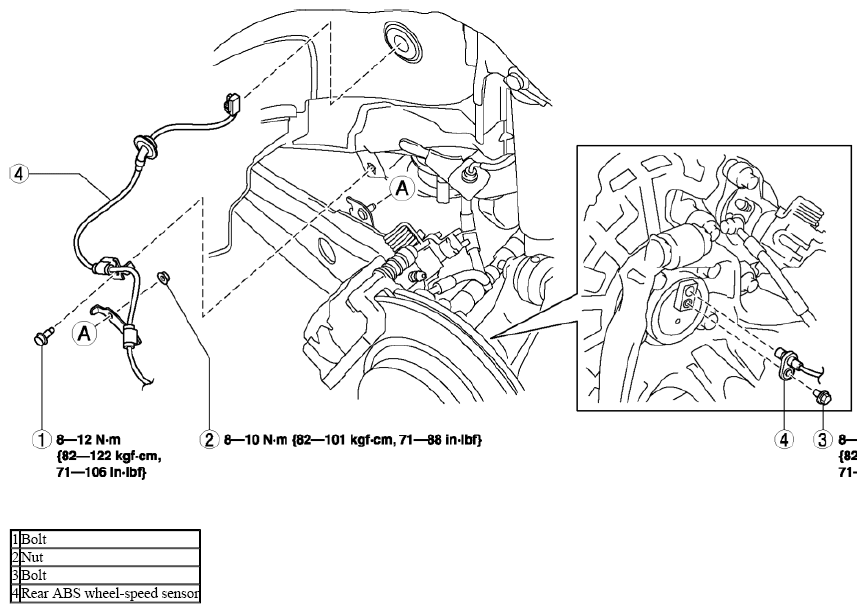

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
