Air Fuel Ratio (A/F) Sensor Removal/Installation
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Disconnect the A/F sensor connector.

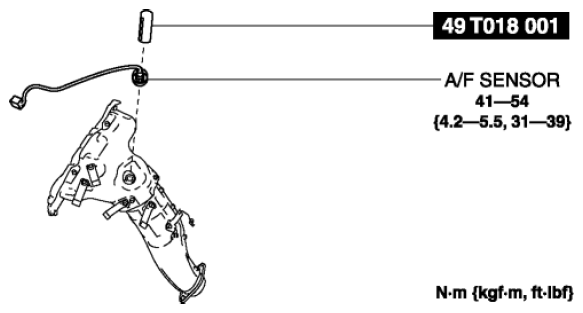

- Remove the A/F sensor using the SST .
- Install in the reverse order of removal.
