Generator field coil control signal

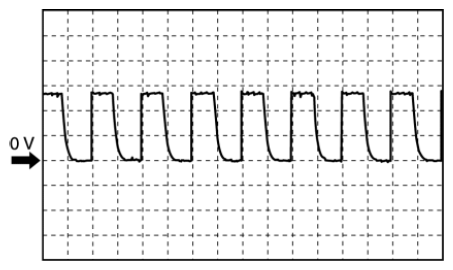

Fig 1: Generator Field Coil Control Signal Waveform

G08140769

PCM terminals

2AA(+)-body ground(-)

Oscilloscope setting

0.5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
