Multiplex Slow Blow Fuse Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the relay and fuse block upper cover. (See RELAY AND FUSE BLOCK REMOVAL/INSTALLATION .)
  3. Remove the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .)
  4. Remove the bolt.

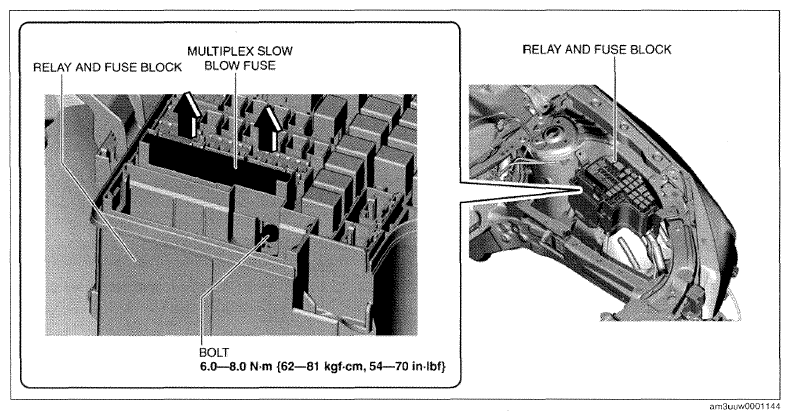

    Fig 1: Multiplex Slow Blow Fuse And Bolts With Torque Specifications
    G09784362Courtesy of MAZDA MOTORS CORP.
  5. Remove the multiplex slow blow fuse.
  6. Install in the reverse order of removal.
