Relay Location

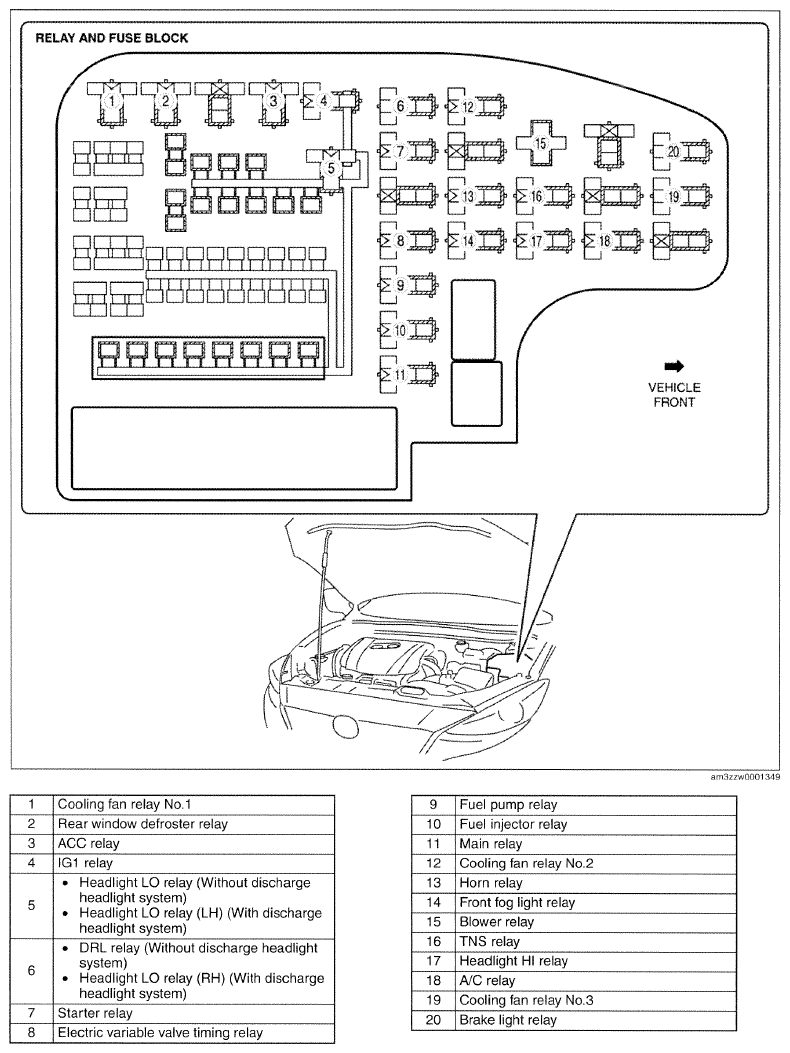

Fig 1: Relay And Fuse Block Location

Courtesy of MAZDA MOTORS CORP.

ENGINE ROOM RELAY AND FUSE BOX RELAY IDENTIFICATION

RELAY DESCRIPTION
Cooling Fan Relay No. 1
Rear Window Defroster Relay
ACC Relay
IG1 Relay
Headlight Lo Relay
DRL Relay
Starter Relay
Electric Variable Valve Timing Relay
Fuel Pump Relay
Fuel Injector Relay
Main Relay
Cooling Fan Relay No. 2
Horn Relay
Front Fog Light Relay
Blower Relay
TNS Relay
Headlight Hi Relay
A/C Relay
Cooling Fan Relay No. 3
Brake Light Relay
