Power Outer Mirror Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
Disconnect the connector.

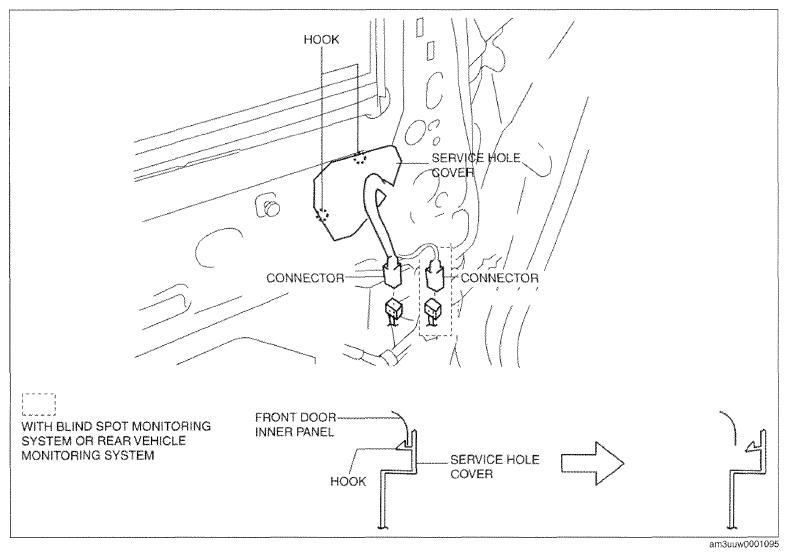

Fig 1: Identifying Power Window Subswitch Connectors
Courtesy of MAZDA MOTORS CORP.
Insert your hand through the front door speaker installation hole and remove hooks.
Remove the service hole cover.
Remove bolts.

Fig 2: Service Hole Cover & Connectors With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Pull the power outer mirror in the direction of the arrow while remove clips, pins.
CAUTION:
- If clip of the power outer mirror is detached, the power outer mirror may fall off and be damaged. When detaching clip of the power outer mirror, hold the power outer mirror by hand during the servicing.
Remove the power outer mirror.
Install in the reverse order of removal. (See POWER OUTER MIRROR INSTALLATION NOTE .)
