Power Outer Mirror Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

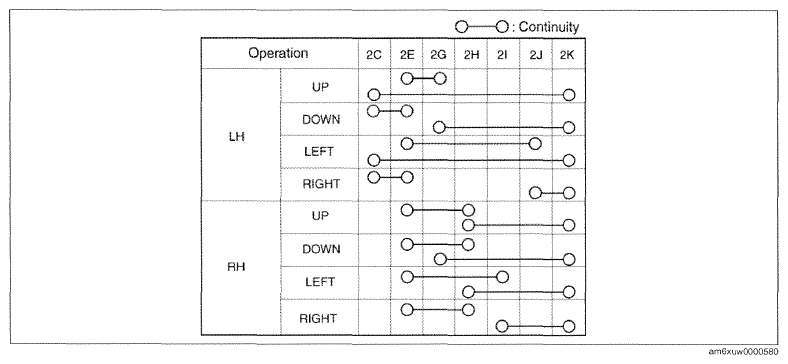

Fig 1: Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

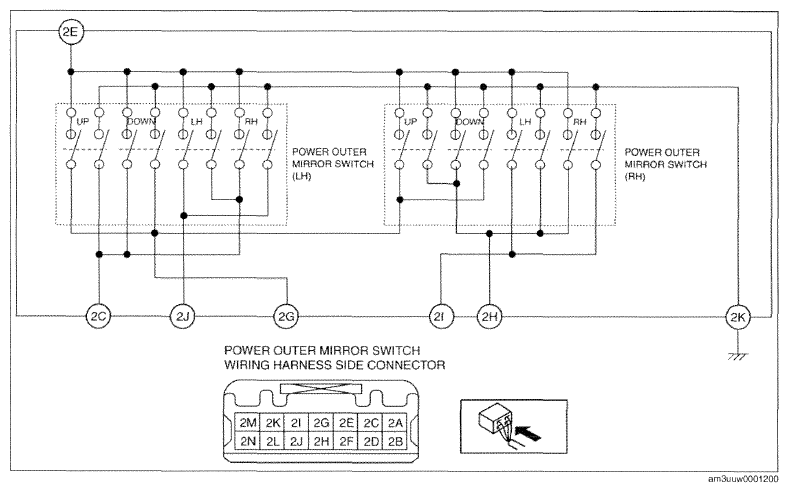

Fig 2: Power Outer Mirror Switch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
