Rearview Mirror Removal/Installation

  1. Remove the screw.
  2. Pull the rearview mirror in the direction of the arrow (1) shown in the figure
  3. Install in the reverse order of removal.

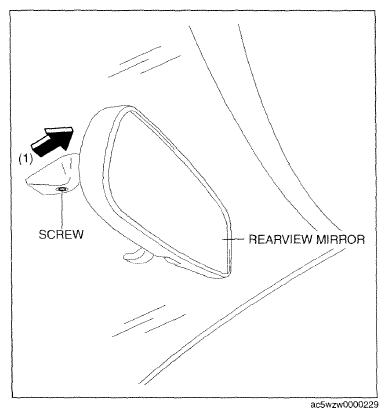

    Fig 1: Pulling Rearview Mirror
    G09761140Courtesy of MAZDA MOTORS CORP.
